2 Hole Copper Lugs Electrical Cable Lugs AD

  • 2 Hole Copper Lugs
  • 2 Hole Copper Lugs
  • 2 Hole Copper Lugs
Category:

2 Hole Copper Lugs Electrical Cable Lugs AD

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

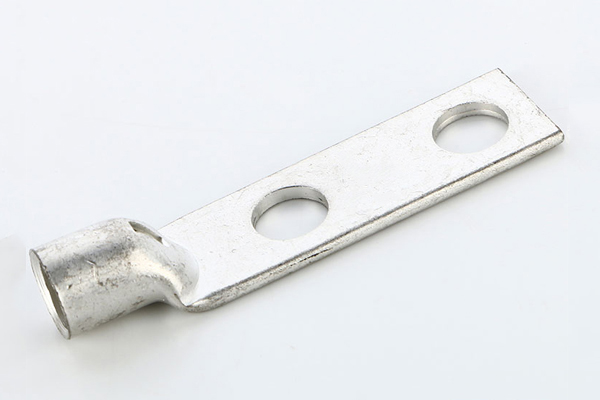

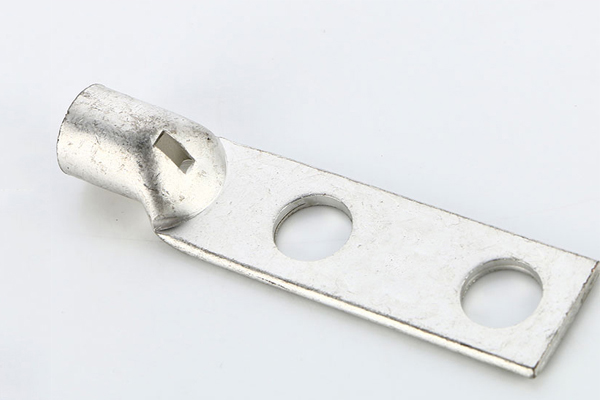

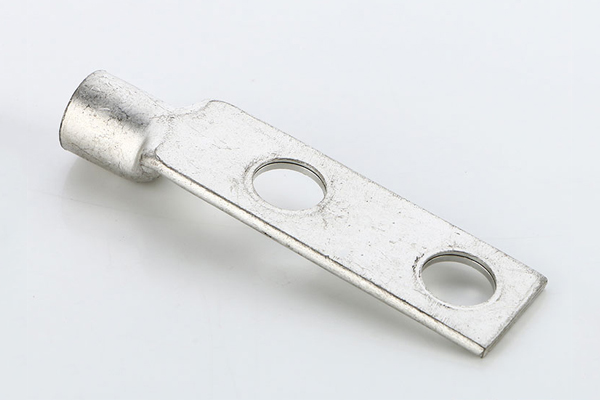

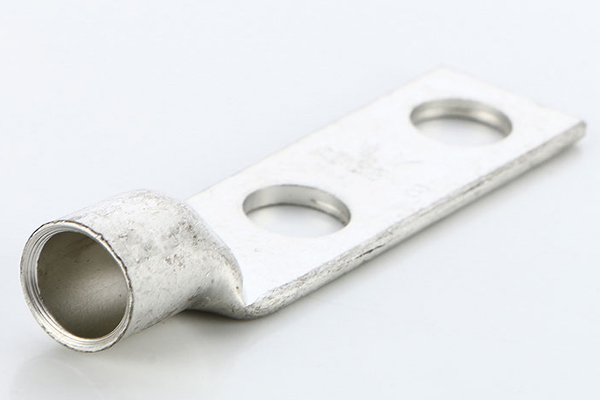

The 2 Hole Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The 2 Hole Copper Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E W B L H
AD38-8 9 11.7 9.5 17.5 12.5 65.8 25.4
AD60-10 11 14.4 11.9 21.3 14.5 74.7 25.4
AD80-10 11 17.9 14.9 26.7 19.5 82.3 25.4
AD100-10 11 20.1 16.8 29.7 19.5 86.6 25.4
AD125-10 11 21.3 17.8 32 19.5 89.7 25.4
AD150-10 11 23.4 19.6 35 22.8 94.5 25.4
AD185-12 14 25.3 21.1 37.8 23.8 117 44.5
AD200-12 14 27 22.5 40.4 24.8 119.6 44.5
AD250-12 14 30.2 25.2 45.2 26.8 120.7 44.5
AD325-12 14 33.1 27.6 49.2 36 130.2 44.5
AD400-12 14 38.2 31.8 56.9 40 136.8 44.5
AD500-12 14 42.7 35.6 63.5 43 147.5 44.5
