90 Degree Lugs Crimping Lugs GC90

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

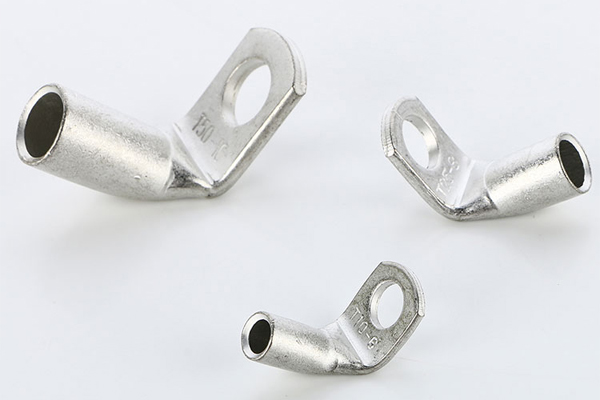

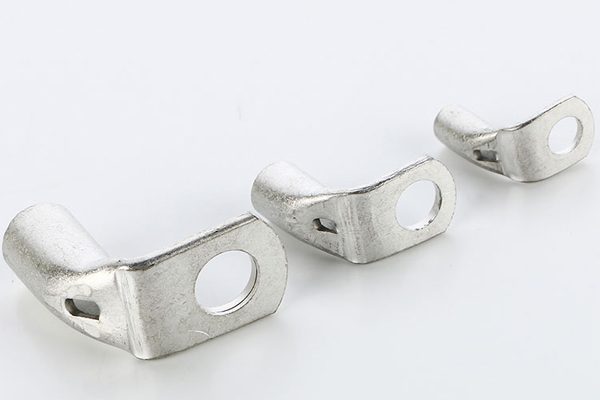

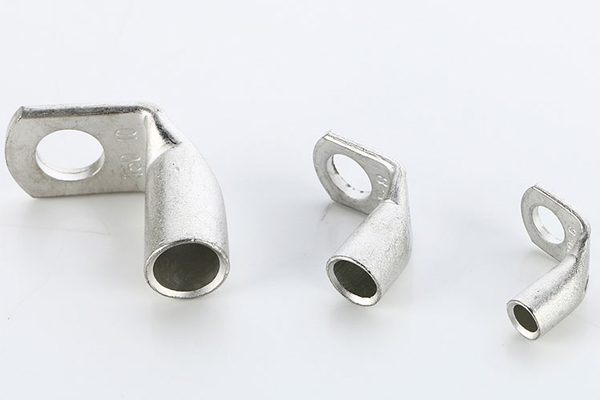

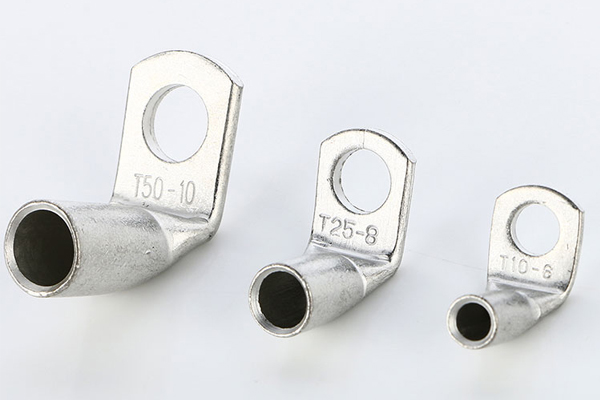

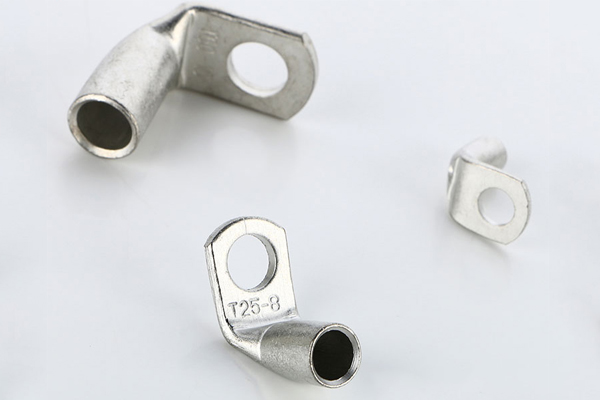

The 90 Degree Lugs are made of the high-quality copper which ensures good conductivity at its user end. The 90 Degree Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E W B L
GC90-10/6 6.4 6.9 4.7 11.9 10.5 12.5
GC90-10/8 8.3 6.9 4.7 13.5 10.5 15.5
GC90-16/6 6.4 7.8 5.6 11.9 11 12
GC90-16/8 8.6 7.8 5.6 13.5 11 15.5
GC90-25/8 8.3 9.5 7.1 14 13 16
GC90-25/10 10.5 9.5 7.1 16 13 19
GC90-35/8 8.3 11 8.2 16.5 16 18
GC90-35/10 10.5 11 8.2 16.5 16 22
GC90-50/10 10.5 12.5 9.5 17.9 19 22
GC90-50/12 13 12.5 9.5 17.9 19 22
GC90-70/10 10.5 15 11.5 21.5 21 22
GC90-70/12 13 15 11.5 21.5 21 22
GC90-95/14 14.5 17 13.5 24.7 24 33
GC90-95/16 16.5 17 13.5 24.7 24 33
GC90-120/14 14.5 20 15.6 28.9 27 33
GC90-120/16 16.5 20 15.6 28.9 27 33
GC90-150/14 14.5 21 16.5 30.4 32 33
GC90-150/16 16.5 21 16.5 30.4 32 33
GC90-185/16 16.5 23.6 18.4 34 34 35
GC90-240/16 16.5 26.4 21.2 41 38 35
