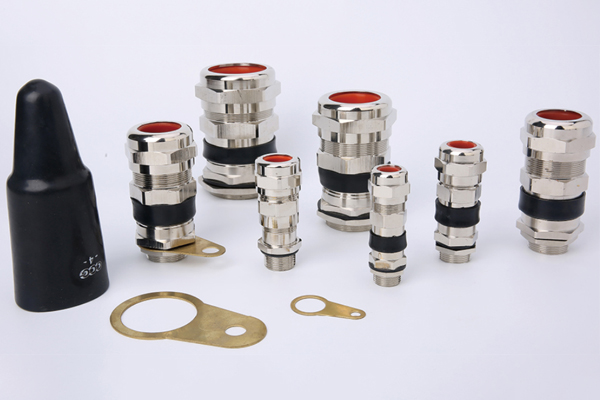

Armored Cable Glands Stuffing Double Sealed Explosion-proof Halogen Free

Specification:

Material: Stainless Steel, SS304/SS316L
Sealing: Silicone Rubber, Neoprene
Treatment of surface: Passivation
Explosion-proof: Exd IIC Gb
Flame Rating: UL94-V0
Protection Rating: IP66 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C
Halogen Free

(In mm)

Item No. Insert thread size Cable acceptance detail Maximum length (H) GL Hex size
Inner sheath/core line  Outer diameter of cable ( B)
Metric NPT.G Coreline maximum Inner sheath Maximum core line Min Max Dirction 1 Direction 2 Across flats Across corners
BDAC-2-01 M20X1.5 1/2″ 9 10 6 5.5 12 0.9/1.25 0/0.7 65.5 15 24 27.7
BDAC-2-01S M20X1.5 1/2″ 9 10 6 9.5 16 0.9/1.25 0/0.7 65.5 15 24 27.7
BDAC-2-02 M20X1.5 1/2″-3/4″ 11.2 12.5 10 12.5 20.5 0.9/1.25 0/0.7 67.5 15 30 34.6
BDAC-2-03 M25X1.5 3/4″-1 16.3 18.4 21 16.9 26 1.25/1.6 0/0.7 71.4 15 36 41.6
BDAC-2-04 M32X1.5 1″-1 1/4″ 22 24.7 42 22 33 1.6/2.0 0/0.7 76 15 46 53.1
BDAC-2-05 M40X1.5 1 1/4″-11/2″ 26.5 29.7 60 28 41 1.8/2.5 0/0.7 78.2 15 55 63.5
BDAC-2-06 M50X1.5 1-1/2″-2′ 37.2 41.7 80 36 52.6 1.8/2.5 0/1 91 15 65 75.1
BDAC-2-07 M63X1.5 2″-2 1/2″ 47.6 53.5 100 46 65.3 1.8/2.5 0/1 98 15 80 92.4
BDAC-2-08 M75X2 2 1/2″-3″ 60 65.3/66.2 120 57 78 1.8/2.5 0/1 102.2 15 95 109.6
