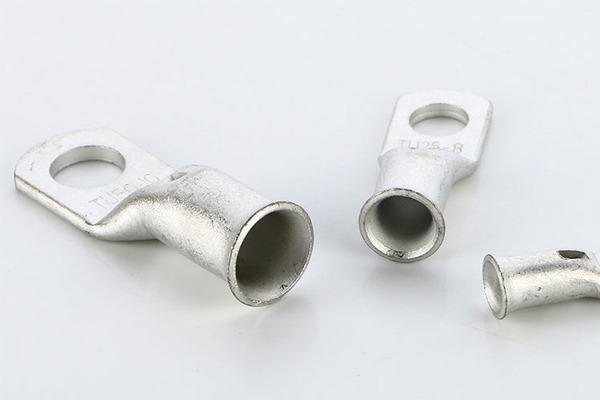

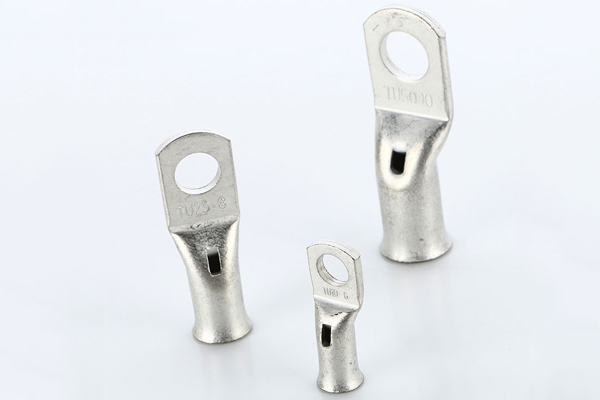

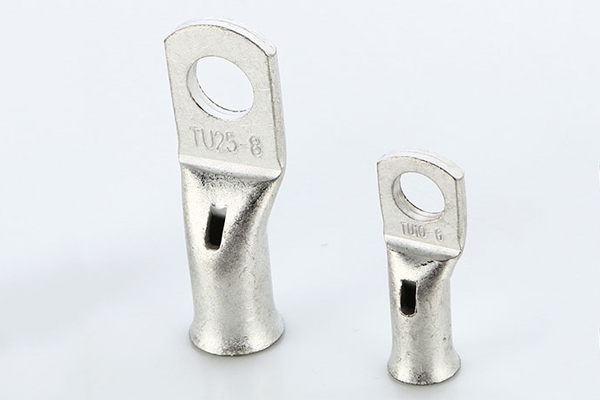

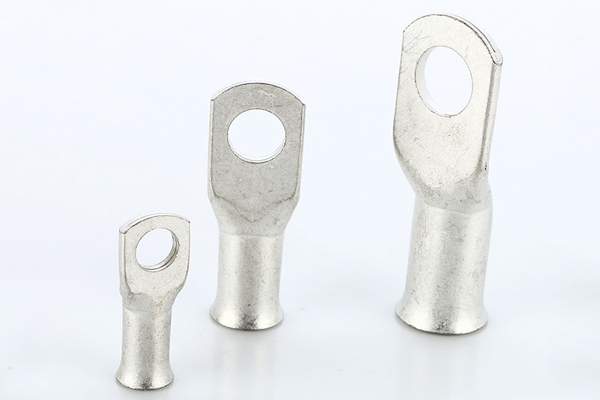

Bell Mouth Copper Lugs Cable Tube Lug Terminal TU

  • Bell Mouth Copper Lugs
  • Bell Mouth Copper Lugs
  • Bell Mouth Copper Lugs
  • Bell Mouth Copper Lugs
Category:

Bell Mouth Copper Lugs Cable Tube Lug Terminal TU

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Bell Mouth Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Bell Mouth Copper Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E W B L
TU10-5 5.3 6.9 4.4 10.5 9 27
TU10-6 6.4 6.9 4.4 10.5 9 27
TU10-8 8.4 6.9 4.4 14 10 35
TU10-10 10.4 6.9 4.4 16 10 39
TU10-12 12.8 6.9 4.4 18 10 39
TU16-5 5.3 8 5.6 11 11 29.5
TU16-6 6.4 8 5.6 11 11 29.5
TU16-8 8.4 8 5.6 14 11 38
TU16-10 10.4 8 5.6 16 11 42
TU16-12 12.8 8 5.6 18 11 42
TU25-5 5.3 9.5 7 13.5 13 40
TU25-6 6.4 9.5 7 13.5 13 40
TU25-8 8.4 9.5 7 13.5 13 40
TU25-10 10.4 9.5 7 16 13 44
TU25-12 12.8 9.5 7 18 13 44
TU35-5 5.3 11 8.2 15.5 14 41
TU35-6 6.4 11 8.2 15.5 14 41
TU35-8 8.4 11 8.2 15.5 14 41
TU35-10 10.4 11 8.2 15.5 14 45
TU35-12 12.8 11 8.2 18 14 45
TU35-14 14.5 11 8.2 20 14 50
TU50-5 5.3 12.1 9.5 17.2 18 46
TU50-6 6.4 12.1 9.5 17.2 18 46
TU50-8 8.4 12.1 9.5 17.2 18 46
TU50-10 10.4 12.1 9.5 17.2 18 50
TU50-12 12.8 12.1 9.5 17.2 18 50
TU50-14 14.5 12.1 9.5 20 18 55
TU50-16 16.5 12.1 9.5 22 18 55
TU70-5 5.3 15 11.5 21.2 18 48
TU70-6 6.4 15 11.5 21.2 18 48
TU70-8 8.4 15 11.5 21.2 18 48
TU70-10 10.4 15 11.5 21.2 18 52
TU70-12 12.8 15 11.5 21.2 18 52
TU70-14 14.5 15 11.5 21.2 18 63
TU70-16 16.5 15 11.5 21.2 18 63
TU95-8 8.4 17 13.5 24.3 24 58
TU95-10 10.4 17 13.5 24.3 24 58
TU95-12 12.8 17 13.5 24.3 24 58
TU95-14 14.5 17 13.5 24.3 24 69
TU95-16 16.5 17 13.5 24.3 24 69
TU120-8 8.4 19 15 27.2 27 73
TU120-10 10.4 19 15 27.2 27 73
TU120-12 12.8 19 15 27.2 27 73
TU120-14 14.5 19 15 27.2 27 73
TU120-16 16.5 19 15 27.2 27 73
TU120-20 21 19 15 27.2 27 73
TU150-8 8.4 21 16.5 30 27 78
TU150-10 10.4 21 16.5 30 27 78
TU150-12 12.8 21 16.5 30 27 78
TU150-14 14.5 21 16.5 30 27 78
TU150-16 16.5 21 16.5 30 27 78
TU150-20 21 21 16.5 30 27 78
TU185-10 10.4 23 18.5 33.5 30 82
TU185-12 12.8 23 18.5 33.5 30 82
TU185-14 14.5 23 18.5 33.5 30 82
TU185-16 16.5 23 18.5 33.5 30 82
TU185-20 21 23 18.5 33.5 30 82
TU240-10 10.4 26 21 37.7 32 88
TU240-12 12.8 26 21 37.7 32 88
TU240-14 14.5 26 21 37.7 32 88
TU240-16 16.5 26 21 37.7 32 88
TU240-20 21 26 21 37.7 32 88
TU300-10 10.4 28 23 41 37 97
TU300-12 12.8 28 23 41 37 97
TU300-14 14.5 28 23 41 37 97
TU300-16 16.5 28 23 41 37 97
TU300-20 21 28 23 41 37 97
