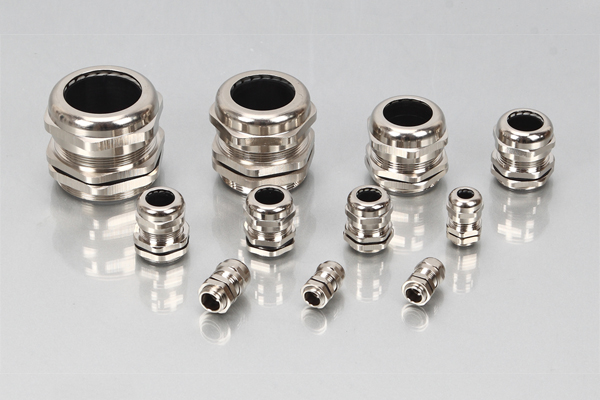

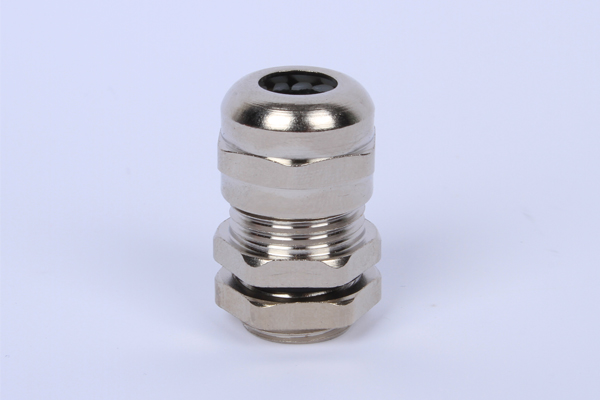

Brass Cable Gland PG Series BPG

  • Nickel Plated Brass Cable Gland
Category:

Nickel Plated Brass Cable Gland

Specification:

Material:
Nickel-plated brass

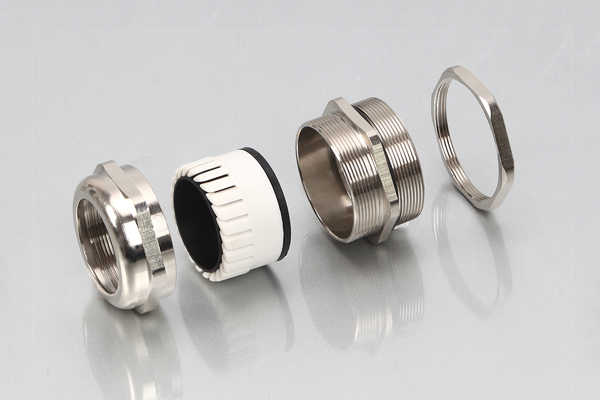

Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Mounting hole Joint Length
H
Spanner size Item No.
PG7 2-5 6.5 12.5 12.5-12.7 17 14/15 BPG7-5
PG7 3-6.5 6.5 12.5 12.5-12.7 17 14/15 BPG7
PG9 3-6.5 8 15.2 15.2-15.4 19 17/18 BPG9-6.5
PG9 4-8 8 15.2 15.2-15.4 19 17/18 BPG9
PG11 4-8 8 18.6 18.6-18.8 21 20/21 BPG11-8
PG11 5-10 8 18.6 18.6-18.8 21 20/21 BPG11
PG 13.5 5-10 8 20.4 20.4-20.6 22 22/23 BPG13.5-10
PG13.5 6-12 8 20.4 20.4-20.6 22 22/23 BPG13.5
PG16 6-12 8 22.5 22.5-22.7 23 24/25 BPG16-12
PG16 10-14 8 22.5 22.5-22.7 23 24/25 BPG16
PG21 12-16 9 28.3 28.3-28.5 27 30 BPG21-16
PG21 13-18 9 28.3 28.3-28.5 27 30 BPG21
PG29 15-22 10 37.0 37.0-37.2 31 40 BPG29-22
PG29 18-25 10 37.0 37.0-37.2 31 40 BPG29
PG36 23-30 11 47.0 47.0-47.2 37 50 BPG36-30
PG36 25-33 11 47.0 47.0-47.2 37 50 BPG36
PG42 30-35 13 54.0 54.0-54.2 37 57 BPG42-35
PG42 32-38 13 54.0 54.0-54.2 37 57 BPG42
PG48 35-40 14 59.3 59.3-59.5 38 64 BPG48-40
PG48 37-44 14 59.3 59.3-59.5 38 64 BPG48
