Brass Cable Gland Reinforced BSPMPG

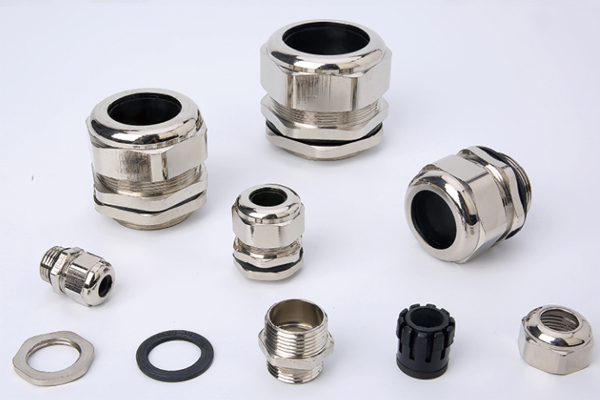

Brass Cable Gland Reinforced
Category:

Brass Cable Gland Reinforced IP68

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Joint Length
H
Spanner size Item No.
MPG7 4-8 8 12.5 18.5 18 BSPMPG7
MPG9 5-10 9 15.2 21.5 22 BSPMPG9
MPG 11 6-12 9 18.6 24.0 24 BSPMPG11
MPG 13.5 10-14 9.5 20.4 25.5 27 BSPMPG13.5
MPG 16 12-16 9.5 22.5 27.0 27 BSPMPG16
MPG21 13-18 11 28.3 28.0 30 BSPMPG21
MPG29 18-25 12.5 37.0 33.0 40 BSPMPG29
MPG36 25-32 15 47.0 35.0 50 BSPMPG36
MPG42 32-42 15 54.0 40.0 59 BSPMPG42
MPG48 35-45 17 59.3 45.0 67 BSPMPG48
