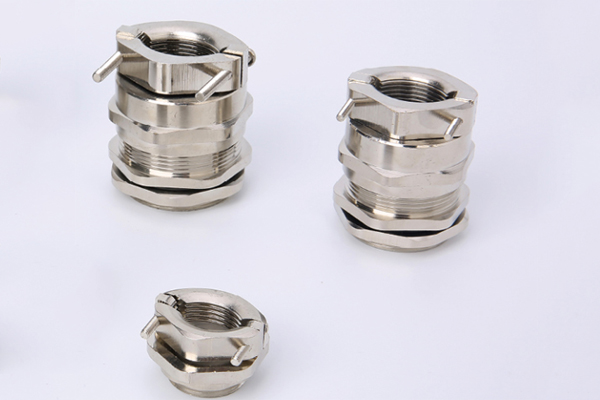

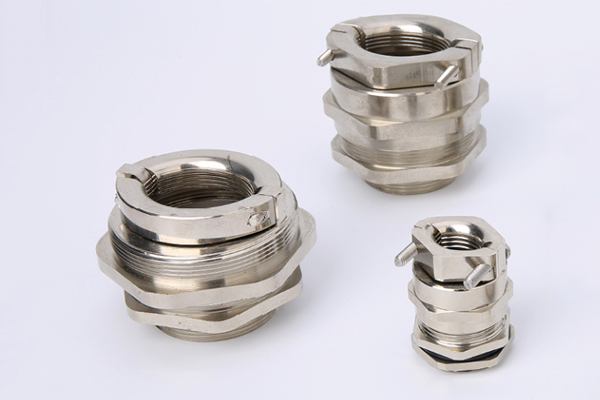

Brass Cable Gland Strain Relief Centric BSM

  • Brass Cable Gland Strain Relief
  • Brass Cable Gland Strain Relief
Category:

Brass Cable Gland Strain Relief Centric Double-Locking

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, REACH approved
Chemical resistant, strain relief

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Joint Length
H
Spanner size Item No.
M12X1.5 3-6.5 6.5 12.0 25 14 BSM12
4-8 8 12.0 27 17/14 BSM12-8
M16X1.5 3-6 8 16.0 27 18 BSM16-6
4-8 8 16.0 27 18 BSM16
5-10 8 16.0 29 20/18 BSM16-10
M18X1.5 5-10 8 18.0 29 20 BSM18
M20X1.5 6-12 8 20.0 31 22 BSM20
10-14 8 20.0 31 24/22 BSM20-12
M25X1.5 10-14 9 25.0 37 24/27 BSM25-14
12-16 9 25.0 37 27 BSM25-16
13-18 9 25.0 37 30/27 BSM25-18
M32X1.5 15-22 10 32.0 42 35 BSM32
18-25 10 32.0 42 40/35 BSM32-25
M40X1.5 18-25 11 40.0 48 40/45 BSM40-25
22-30 11 40.0 48 45 BSM40-30
25-33 11 40.0 48 50/45 BSM40-33
M50X1.5 32-38 13 50.0 50 57/55 BSM50
M63X1.5 37-44 14 63.0 51 64/68 BSM63
42-52 14 63.0 51 78/68 BSM63-52

PG/G/NPT thread could be customized.
