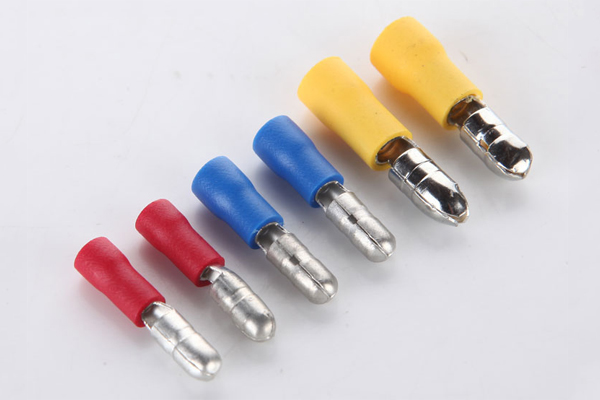

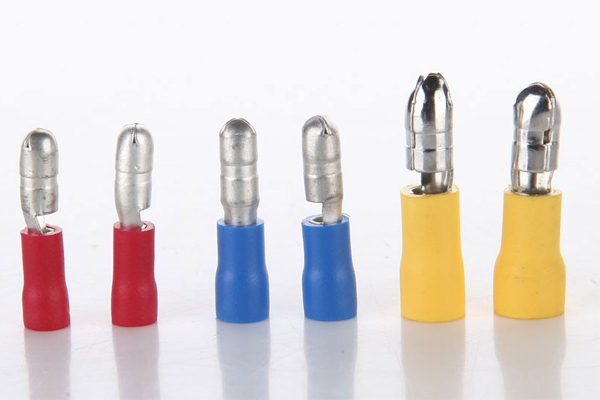

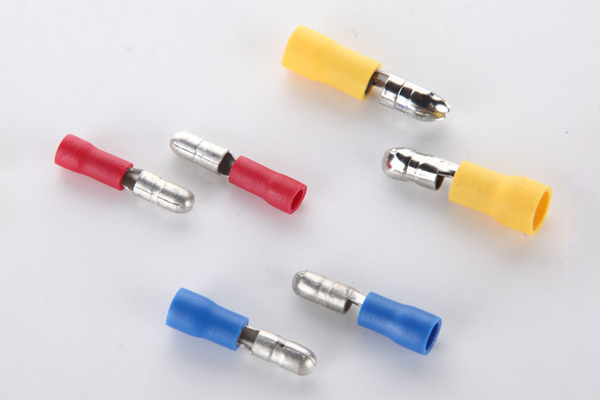

Bullet Terminals Insulated Wire Connector BFB

  • Bullet Terminals
Category:

Bullet Terminals Insulated Bullet Wire Connector BFB

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Bullet Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

Insulated square:0.5~1.5mm²(22~16) Max. current: lmax=10A
Item No Thickness
of material
DIMENSION Color
F d H L
mm mm mm mm mm mm mm
BFB1.25-156 0.4 4 11 3.5 1.7 10 21 Red
Insulated square:1.5~2.5mm²(16~14) Max. current: lmax=15A
Item No Thickness
of material
DIMENSION Color
F d H L
mm mm mm mm mm mm mm
BFB2-156 0.4 4 11 4 2.3 10 21 Blue
BFB2-195 0.4 5 11 4 2.3 10 21
Insulated square:4~6mm²(12~10) Max. current: lmax=24A
Item No Thickness
of material
DIMENSION Color
F d H L
mm mm mm mm mm mm mm
BFB5.5-195 0.4 4 11 5 3.4 14 25 Yellow
