Compression Lugs Wire Lugs SG

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

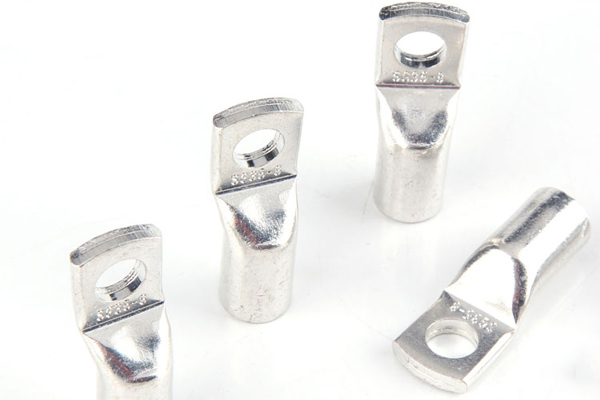

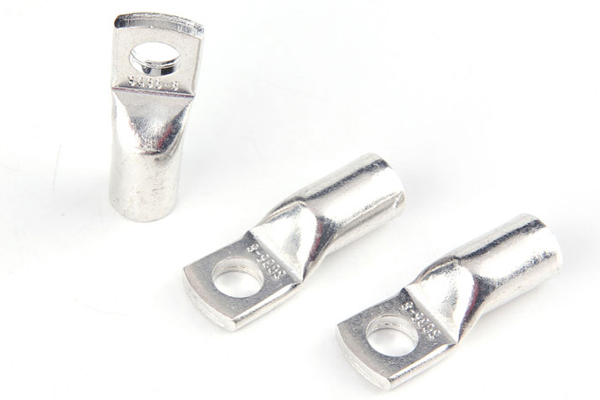

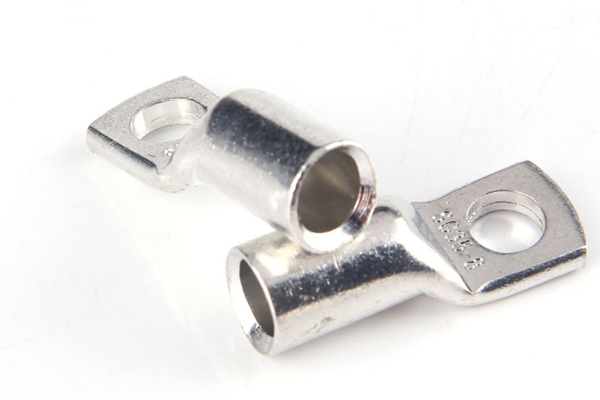

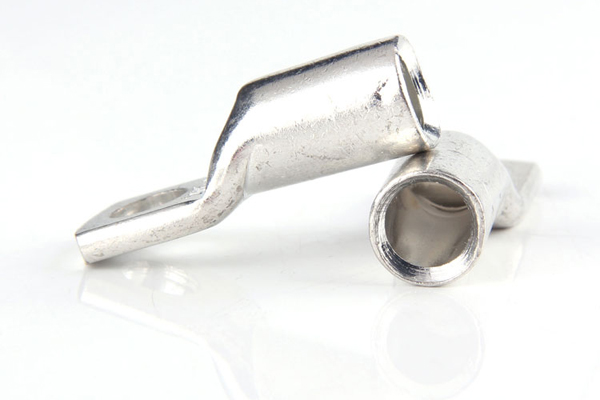

The Compression Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Compression Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E W B L
SG35-6 6.5 12 8.5 15 17 39
SG35-8 8.5 12 8.5 15 17 39
SG50-6 6.5 14 10 15 19 47
SG50-8 8.5 14 10 17 19 47
SG50-10 10.5 14 10 19 19 50
SG70-6 6.5 16.5 12 17 21 53
SG70-8 8.5 16.5 12 17 21 53
SG70-10 10.5 16.5 12 19 21 55
SG70-12 13 16.5 12 19 21 59
SG95-6 6.5 18 13.5 19 25 59
SG95-8 8.5 18 13.5 19 25 59
SG95-10 10.5 18 13.5 19 25 59
SG95-12 13 18 13.5 19 25 62
SG120-6 6.5 19.5 15 20.8 26 62
SG120-8 8.5 19.5 15 20.8 26 62
SG120-10 10.5 19.5 15 20.8 26 62
SG120-12 13 19.5 15 20.8 26 62
SG150-6 6.5 21 16.5 20.8 30 67
SG150-8 8.5 21 16.5 20.8 30 67
SG150-10 10.5 21 16.5 20.8 30 67
SG150-12 13 21 16.5 20.8 30 72
SG185-10 10.5 24 19 24.5 30 76
SG185-12 13 24 19 31 30 83
SG185-16 17 24 19 31 30 83
SG240-10 10.5 26 21 31 35 83
SG240-12 13 26 21 31 35 93
SG240-14 15 26 21 31 35 93
SG240-16 17 26 21 31 35 93
SG300-10 10.5 30 23.5 31 44 98
SG300-12 13 30 23.5 31 44 98
SG300-14 15 30 23.5 31 44 98
SG300-16 17 30 23.5 31 44 98
