EMC Brass Cable Gland EMC-W

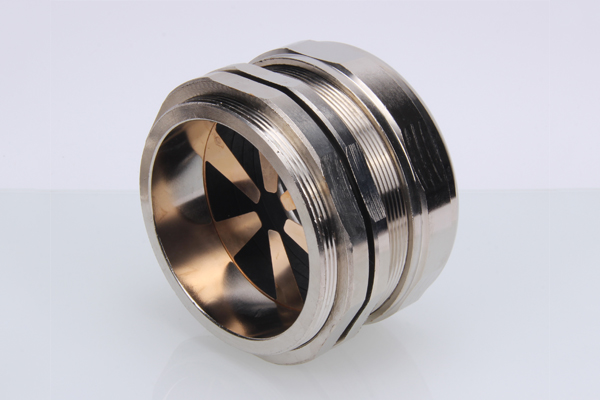

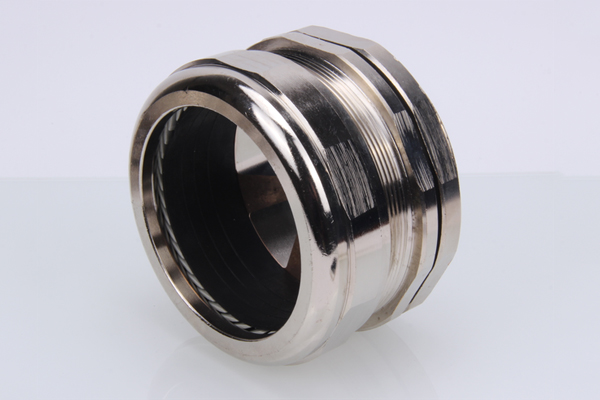

  • EMC Brass Cable Gland
Category:

EMC Brass Cable Gland Metal EMC gland

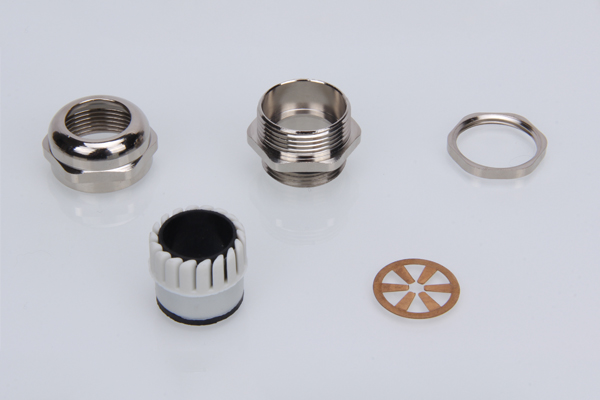

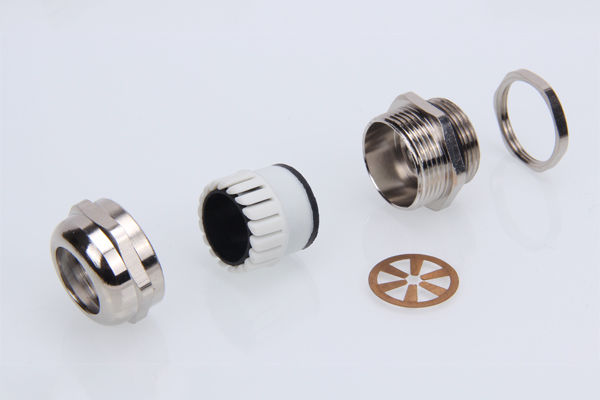

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, REACH approved
Metal EMC gland with cable sealed rated IP68 (10 bar)

(In mm)

Item Cable Range Thread Length
GL
Joint Length
H
Spanner size Item No.
M PG G  NPT
M12X1.5 PG7 G1/4 NPT1/4 3-6.5 6.5 19 14 EMC-W Series
4-8 8 19 17/14
M16X1.5 PG9 3-6 8 20 18
4-8 8 20 18
5-10 8 21 20/18
M18X1.5 PG11 G3/8 NPT3/8 5-10 8 21 20
M20X1.5 PG13.5 G1/2 NPT1/2 6-12 8 22 22
10-14 8 23 24/22
M22X1.5 PG16 10-14 8 23 24
M25X1.5 G3/4 NPT3/4 10-14 9 25 24/27
PG21 12-16 9 27 27
13-18 9 27 30/27
M32X1.5 15-22 10 29 35
PG29 G1 NPT1 18-25 10 31 40/35
M40X1.5 18-25 11 31 40/45
22-30 11 35 45
PG36 G1-1/4 NPT1-1/4 25-33 11 37 50/45
M50X1.5 PG42 G1-1/2 NPT1-1/2 32-38 13 37 57/55
M63X1.5 PG48 G2 NPT2 37-44 14 38 64/68
42-52 14 38 78/68
M72X2 42-52 16 42 78
M80X2 55-62 18 45 88
