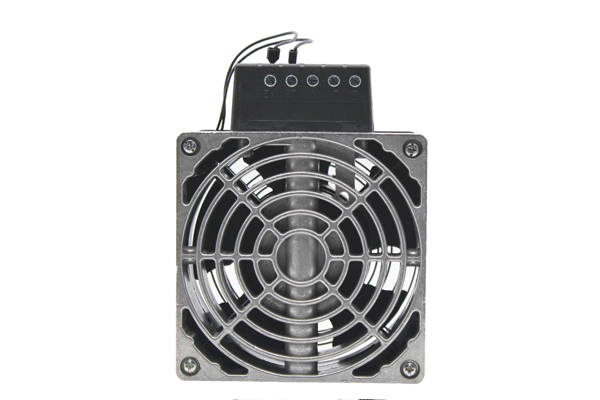

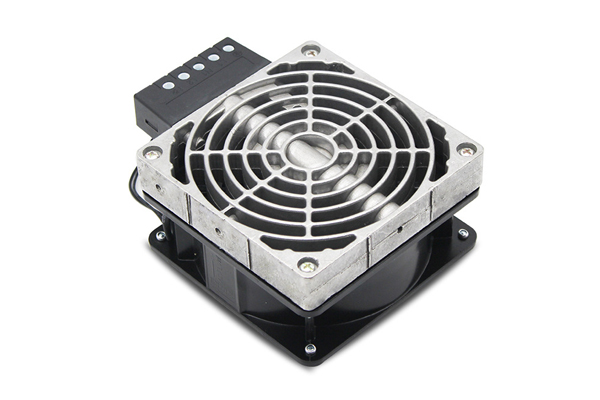

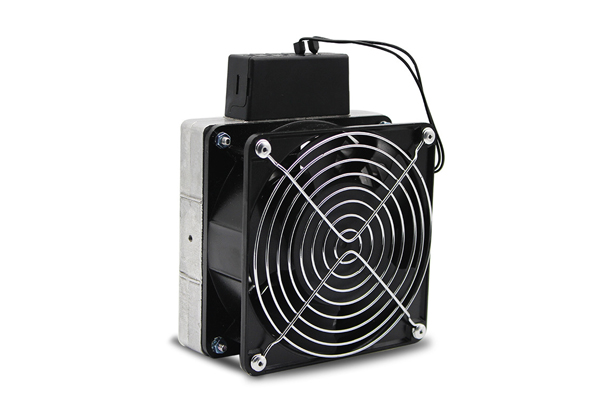

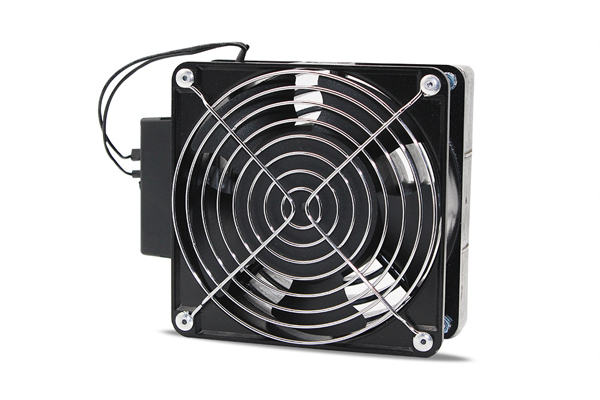

Fan Heater HVL 031 Compact high-performance Space-saving

  • Fan Heater
  • Fan Heater
  • Fan Heater
Category:

Fan Heater HVL 031 Compact high-performance Space-saving

Specification:

Heating element: high-performance cartridge
Temperature safety cut-out: to protect against overheating in case of fan failure, automatic reset
Heater body: die-cast aluminum (glass bead blasted)
Connection: 3-pole screw connector 2.5mm², clamping torque 0.8Nm max.
Connection casing: plastic according to UL94 V-0, black
Mounting: Clipping for 35mm DIN rail
Fitting position: vertical airflow (air outlet up)
Working Temperature: -45 to +80°C
Working humidity: max. 90% RH
Protection Rating: IP20
Axial fan, ball bearing: airflow see table, service life 50,000h at +25°C
Connection (axial fan): 2-pole screw connector 2.5mm² (L2/N2)

Item No. HVL 031 Item No. HVL 031 Heating capacity Recommended Airflow min., free flow Dimensions Weight (approx.)
pre-fuse T (time-delay)
230VAC, 50/60Hz 120VAC, 50/60Hz 230VAC 120VAC
03102.0-00 03102.9-00 100W 1.0A 2.0A 35m³/h 80 x 112 x 47mm 0.6kg
03103.0-00 03103.9-00 150W 1.25A 2.5A 35m³/h 80 x 112 x 47mm 0.6kg
