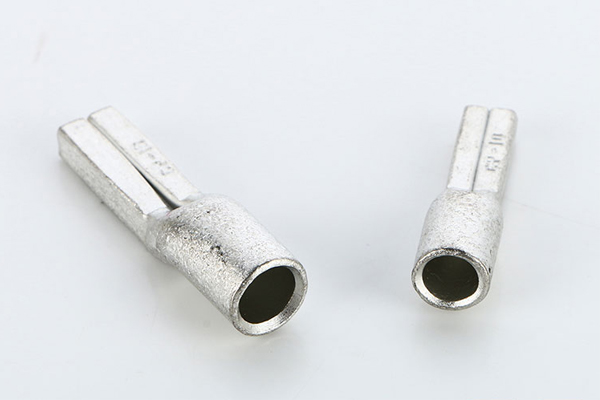

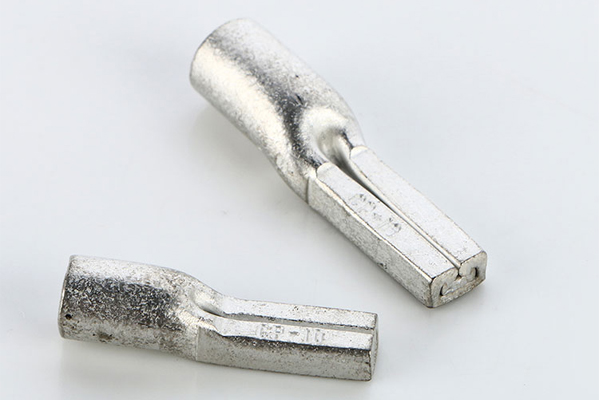

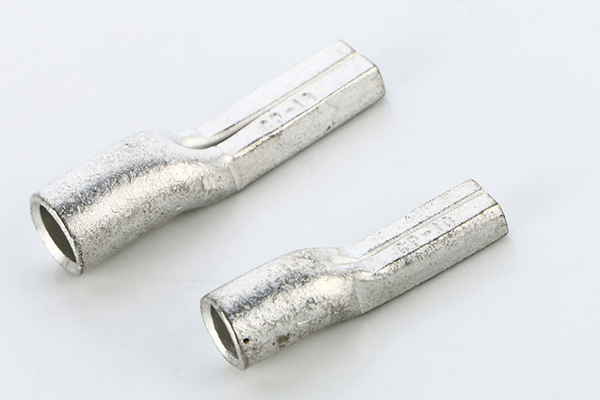

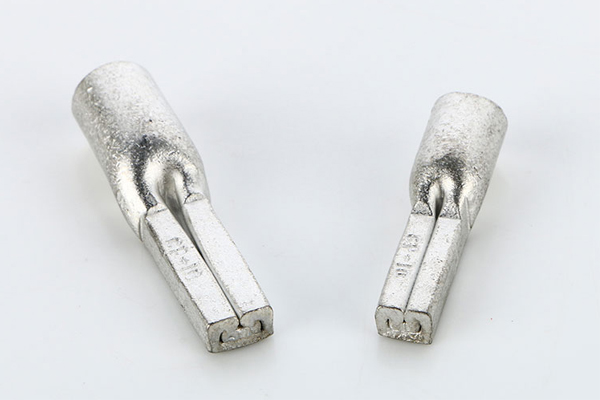

Flat Type Copper Lugs Cable Terminal Lugs CP

  • Flat Type Copper Lugs
  • Flat Type Copper Lugs
  • Flat Type Copper Lugs
  • Flat Type Copper Lugs
Category:

Compression Lugs Wire Lugs SG

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Compression Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Compression Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. W L L1
CP-10 6.8 4.7 5 25 12
CP-16 7.8 5.6 6 31 15
CP-25 9.4 7.1 7 34 18
CP-35 11.3 8.7 9 42 18
CP-50 12.6 9.8 10 46 21
