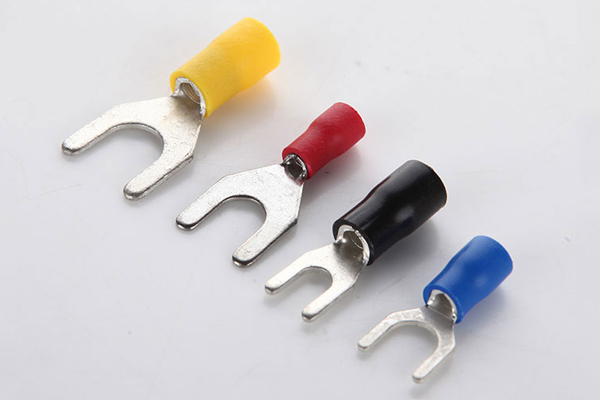

Fork Terminals Insulated Wire Connector YF

  • Fork Terminals
  • Fork Terminals
Category:

Fork Terminals Insulated Wire Connector Vinyl YF Type

Specification:

Material: Copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree heat resistant
Fork Terminals offer a termination security in high vibration areas. All these terminals are made of high-quality copper in good conductivity and corrosion resistance.

Size of cable: 0.5-1.5mm2(AWG 22-16) Max.Current=19A
ITEM NO DIMENSION
American bolt number Dia.of bolt
D2(mm)
B
mm
L
mm
F
mm
H
mm

mm
color
YF1.25-3 #4 3.2mm 5.7 21.2 6.5 10 4.3 red
YFS1.25-3.5 #6 3.7mm 5.7 21.2 6.5
YFL1.25-3.5 #6 3.7mm 6.4 21.2 6.5
YFS1.25-4 #8 4.3mm 6.4 21.2 6.5
YFM1.25-4 #8 4.3mm 7.2 21.2 6.5
YFL1.25-4 #8 4.3mm 8.1 21.2 6.5
YFS1.25-5 #10 5.3mm 8.1 21.2 6.5
YFL1.25-5 #10 5.3mm 9.5 21.2 6.5
YFS1.25-6 1/4 6.5mm 9.5 21.2 6.5
YFL1.25-6 1/4 6.5mm 12 27.2 11
Size of cable: 1.5-2.5mm2(AWG 16-14) Max.Current=27A
ITEM NO DIMENSION
American bolt number Dia.of bolt
D2(mm)
B
mm
L
mm
F
mm
H
mm

mm
color
YF2-3 #4 3.2mm 5.7 21.2 6.5 10 4.9 blue
YFS2-3.5 #6 3.7mm 5.7 21.2 6.5
YFL2-3.5 #6 3.7mm 6 21.2 6.5
YFS2-4 #8 4.3mm 6.4 21.2 6.5
YFM2-4 #8 4.3mm 7.2 21.2 6.5
YFL2-4 #8 4.3mm 8.1 21.2 6.5
YFS2-5 #10 5.3mm 8.1 21.2 6.5
YFL2-5 #10 5.3mm 9.5 21.2 6.5
YFS2-6 1/4 6.5mm 9.5 21.2 6.5
YFL2-6 1/4 6.5mm 12 27.2 11
Size of cable: 2.5-4mm2(AWG 14-12) Max.Current=37A
ITEM NO DIMENSION
American bolt number Dia.of bolt
D2(mm)
B
mm
L
mm
F
mm
H
mm

mm
color
YF3.5-3 #4 3.2mm 5.7 24.8 7 13.5 6.2 black
YF3.5-4 #8 4.3mm 8 24.8 7
YF3.5-5 #10 5.3mm 8 24.8 7
YF3.5-6 1/4 6.5mm 12 28 12.1
Size of cable: 4-6mm2(AWG 12-10) Max.Current=48A
ITEM NO DIMENSION
American bolt number Dia.of bolt
D2(mm)
B
mm
L
mm
F
mm
H
mm

mm
color
YF 5.5-3.5 #6 3.7mm 8.3 25.2 7.5 13.5 6.7 yellow
YFS 5.5-4 #8 4.3mm 8.3 25.2 7.5
YFL 5.5-4 #8 4.3mm 9 23.9 7.5
YF 5.5-5 #10 5.3mm 9 23.9 7.5
YFS 5.5-6 1/4 6.5mm 9 23.9 7.5
YFL 5.5-6 1/4 6.5mm 12 31.2 12
YF5.5-8 5/16 8.4mm 14 30 11.5
