High Voltage Cable Lugs Copper Electrical Lugs DTS

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

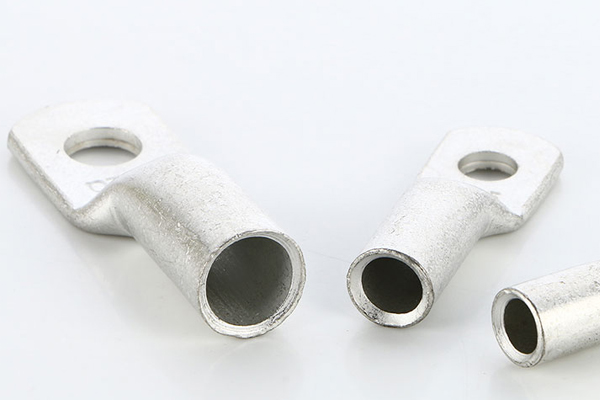

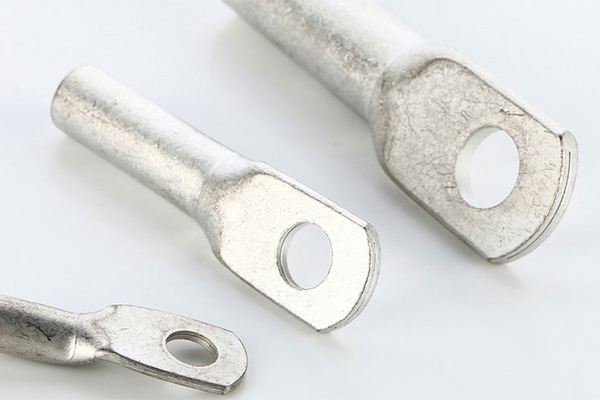

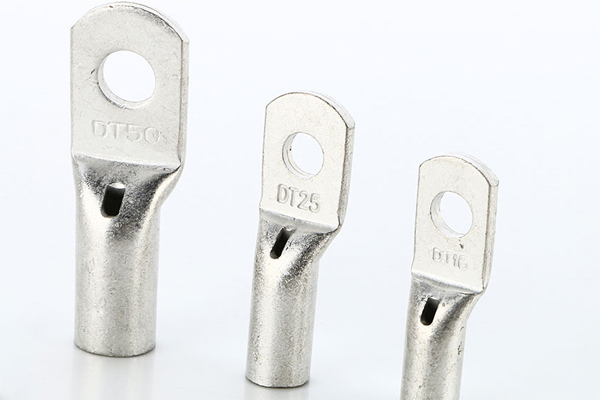

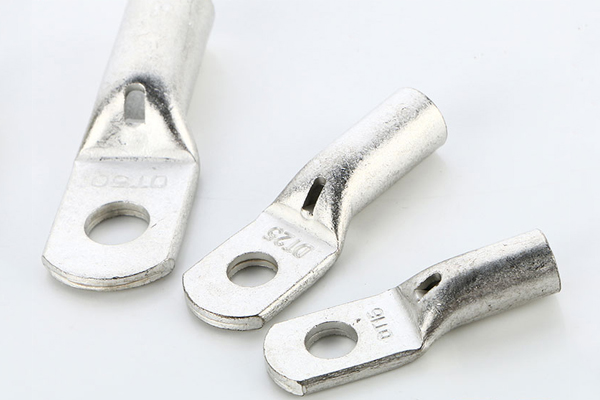

The High Voltage Cable Lugs are made of the high-quality copper which ensures good conductivity at its user end. The High Voltage Cable Lugs are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. E W B L
DTS16-6 7 9 6 13 15 40
DTS25-6 7 10 7 15 20 45
DTS35-6 7 11 8 16 23 50
DTS50-8 9 13 10 18.7 23 55
DTS70-8 9 15 11 21.5 26 60
DTS95-10 11 18 13 25 28 65
DTS120-12 13 20 15 28.8 33 75
DTS150-12 13 22 16 31.5 40 85
DTS185-16 17 25 19 36 47 95
DTS240-16 17 27 21 40 50 105
DTS300-20 21 30 23 43.5 55 115
DTS400-20 21 34 26 49 60 130
