Hooked Blade Terminal Wire Connector BLBV

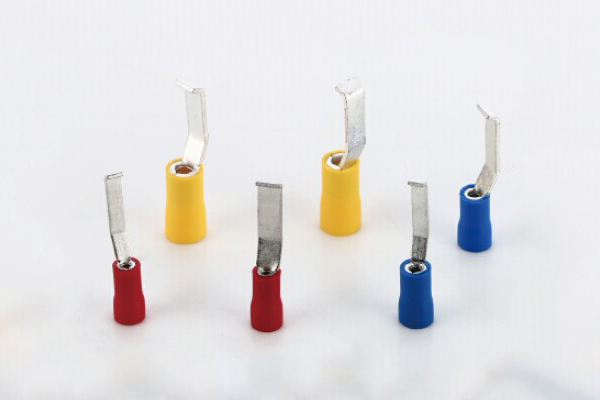

Hooked Blade Terminal
Category:

Hooked Blade Terminal Crimp Terminals Electrical Connector BLBV

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Hooked Blade Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

Item No. AWG
mm²
B
mm
L
mm
H
mm

mm
Color
BLBV1.25-3 22-16
0.5-1.5
19A
1000PCS
3 26.8 10 4.3 Red
BLBV1.25-4.6 4.6 26.8 10 4.3 Red
BLBV2-3 16-14
1.5-2.5
27A
1000pcs
3 26.8 10 4.9 Blue
BLBV2-4.6 4.6 26.8 10 4.9 Blue
BLBV5.5-3 12/10
4/6
48A
500PCS
3 29.3 13 6.7 Yellow
BLBV5.5-4.6 4.6 29.3 13 6.7 Yellow
