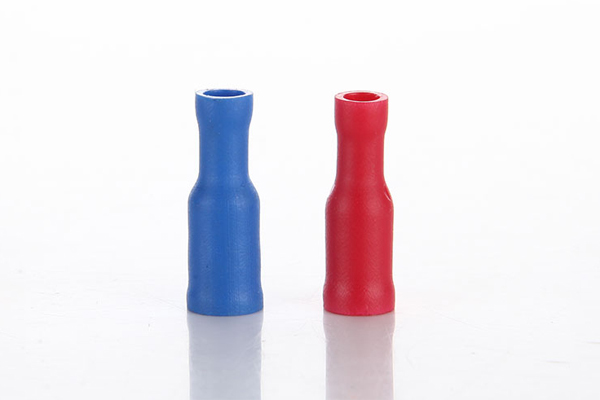

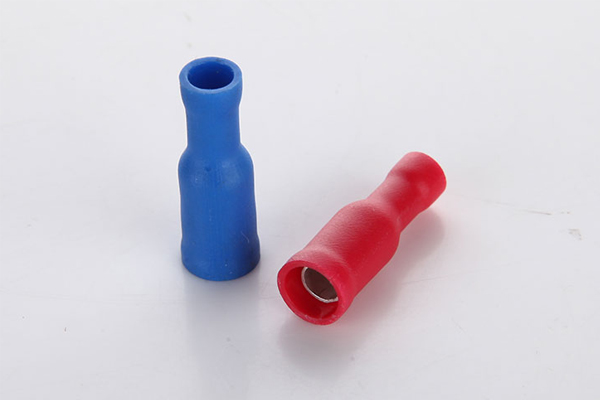

Insulated Bullet Terminals Sockets Wire Connector BFA

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Bullet Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

 Insulated square:0.5~1.5mm²(22~16) Max. current: lmax=10A
Item No Thickness
of material
DIMENSION Color
d F L
mm mm mm mm mm mm mm
FA1.25-156 0.4 4 6.3 2.7 1.7 13 24.5 Red
Insulated square:1.5~2.5mm²(16~14) Max. current: lmax=15A
Item No Thickness
of material
DIMENSION Color
d F L
mm mm mm mm mm mm mm
FA2-156 0.4 4 6.3 3.3 2.3 14 24.5 Blue
FA2-195 0.4 5 7 3.3 2.3 14 24.5
Insulated square:4~6mm²(12~10) Max. current: lmax=24A
Item No Thickness
of material
DIMENSION Color
F L
mm mm mm mm mm mm mm
FA5.5-195 0.4 5 7 4.5 3.4 14 29.5 Yellow
