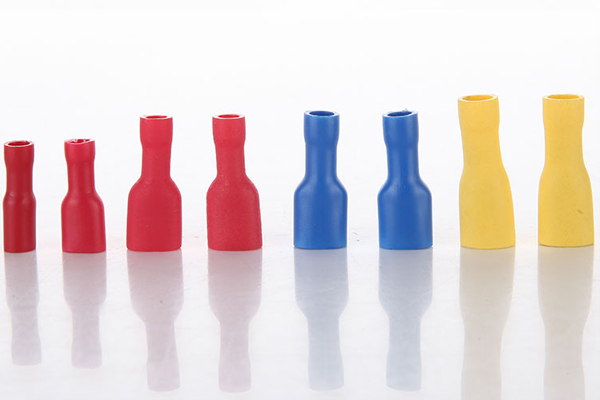

Insulated Female Connector Wire Connector BPV

  • Insulated Female Connector
Category:

Insulated Female Connector Electrical Terminal BPV

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Female Connector offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

Insulated square:0.5~1.5mm²(AWG22~16)Max. current: lmax=10A
Item No. NEMA-TAB
T*B1

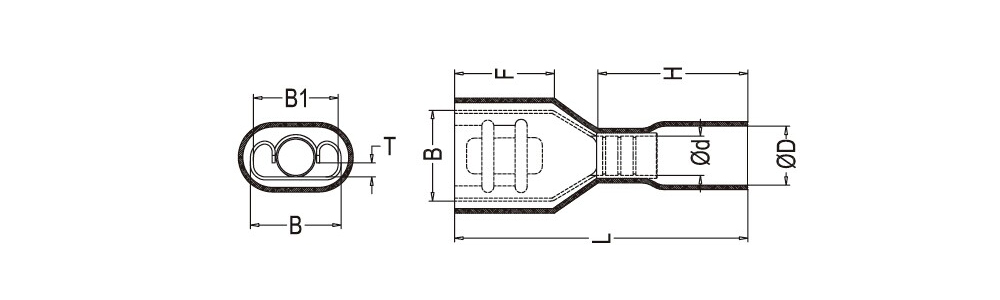

DIMENSION
B L F H
mm mm mm mm mm mm mm
BPV1.25-187(5) 0.5×4.75 5.6 3.8 1.7 20 6 10
BPV1.25-187(8) 0.8×4.75 5.6 3.8 1.7 20 6 10
BPV1.25-250 0.8×6.35 7.4 3.8 1.7 23.2 7.8 10
Insulated square:1.5~2.5mm²(AWG16~14)Max. current: lmax=15A
Item No. NEMA-TAB DIMENSION
T*B1 B L F H
mm mm mm mm mm mm mm
BPV2-187(5) 0.5×4.75 5.6 4 2.3 20 6 10
BPV2-187(8) 0.8×4.75 5.6 4 2.3 20 6 10
BPV2-250 0.8×6.35 7.4 4 2.3 23.5 7.8 10
Insulated square:4~6mm²(AWG12~10)Max. current: lmax=24A
Item No. NEMA-TAB DIMENSION
T*B1 B L F H
mm mm mm mm mm mm mm
BPV5.5-250 0.8×6.35 7.4 5.7 3.4 23.5 7.8 13
