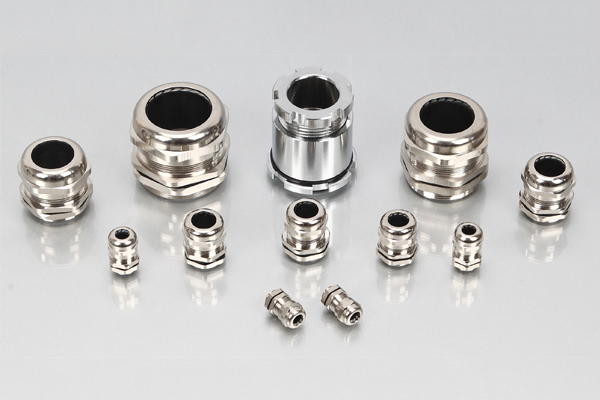

Large Range Brass Cable Gland BRM

Large Range Brass Cable Gland
Category:

Large Range Brass Cable Gland

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

(In mm)

Item Cable
Range
Thread Length
GL
Thread O.D.
AG
Joint Length
H
Spanner size  Item No.
M12X1.5 4-8 8 12.0 17 17/14 BRM12-8
M14X1.5 5-10 8 14.0 20 20/17 BRM14-10
M16X1.5 5-10 8 16.0 20 20/18 BRM16-10
M18X1.5 6-12 8 18.0 21 22/20 BRM18-12
M20X1.5 10-14 8 20.0 22 24/22 BRM20-12
M22X1.5 12-16 8 22.0 27 27/24 BRM22-16
M24X1.5 12-16 9 24.0 27 27 BRM24-16
M25X1.5 13-18 9 25.0 27 30/27 BRM25-18
M30X2 15-22 9 30.0 27 35/32 BRM30-22
M32X1.5 18-25 10 32.0 31 40/35 BRM32-25
M40X1.5 25-33 11 40.0 37 50/45 BRM40-33
M50X1.5 37-44 14 50.0 38 64/55 BRM50-44
M63X1.5 42-52 14 63.0 38 78/68 BRM63-52
M72X2 55-62 18 72 45 88/78 BRM72-62
