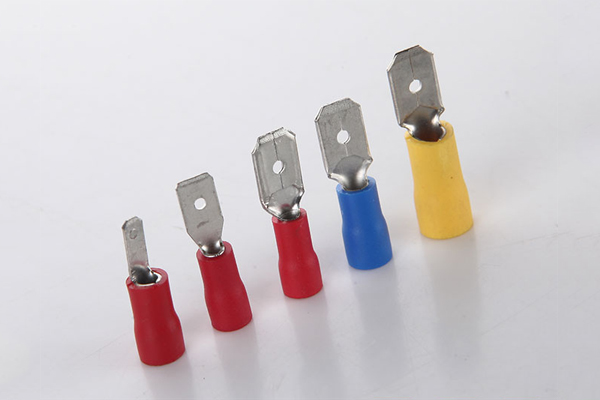

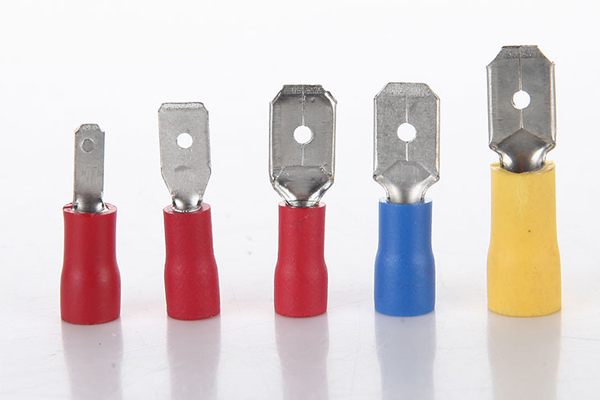

Male Terminal Insulated Wire Connector BLVB

  • Male Terminal
  • Male Terminal
  • Male Terminal
Category:

Insulated Male Terminal Male Spade Connector Wire Connector BLVA

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Male Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

Insulated square:0.5~1.5mm²(22~16)Max. current: lmax=10A
Item No NEMA-TAB
mm
Thickness
mm
DIMENSION
B
mm

mm

mm
L
mm
H
mm
BLVB1.25-110(5) 0.5×2.8 0.5 2.8 1.7 4.3 17.7 10
BLVB1.25-110(8) 0.8×2.8 0.8 2.8 1.7 4.3 17.7
BLVB1.25-187(5) 0.5×4.75 0.5 4.75 1.7 4.3 20
BLVB1.25-187(8) 0.8×4.75 0.8 4.75 1.7 4.3 21
BLVB1.25-250 0.8×6.35 0.4*2 6.35 1.7 4.3 21
Insulated square:1.5~2.5mm²(16~14)Max. current: lmax=15A
Item No NEMA-TAB
mm
Thickness
mm
DIMENSION
B
mm

mm

mm
L
mm
H
mm
BLVB2-187(5) 0.5×4.75 0.5 4.75 2.3 4.3 20 10
BLVB2-187(8) 0.8×4.75 0.8 4.75 2.3 4.3 19
BLVB2-250 0.8×6.35 0.4*2 6.35 2.3 4.3 21
Insulated square:4~6mm²(12~10)Max. current: lmax=24A
Item No NEMA-TAB
mm
Thickness
mm
DIMENSION
B
mm

mm

mm
L
mm
H
mm
BLVB5.5-250 0.8×6.35 0.4*2 6.35 3.4 5.7 25 13.5
