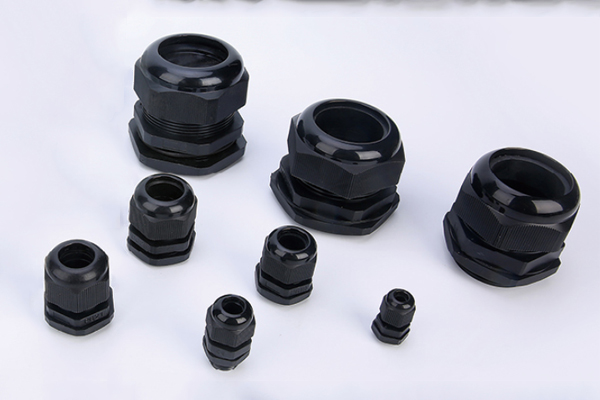

Metric Lengthen Cable Gland Nylon 66 NML

  • Nylon Cable Gland
  • Nylon Cable Glands
  • Nylon Cable Gland
Category:

Metric Lengthen Cable Gland Nylon 66

Specification:

Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
waterproof. IP68

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Spanner size Item No.
M12X1.5 3-6.5 15 12 18/16 NM12L
M12X1.5 4-8 15 12 18/16 NM12-8L
M16X1.5 4-8 15 16 22/19 NM16L
M16X1.5 5-10 15 16 22/19 NM16-10L
M18X1.5 5-10 15 18 24/22 NM18L
M20X1.5 6-11 15 20 27/24 NM20L
M20X1.5 10-14 15 20 27724 NM20-14L
M22X1.5 10-13 15 22 30/2 了 NM22L
M25X1.5 12-15 15 25 31/28 NM25L
M25X1.5 13-18 15 25 31/28 NM25-18L
M27X1.5 13-18 15 27 35/33 NM27L
M30X1.5 16-21 15 30 37735 NM30L
M32X1.5 16-21 15 32 38/35 NM32L
M36X1.5 18-25 15 36 45/42 NM36L
M40X1.5 22-32 18 40 52/52 NM40L
M50X1.5 32-38 20 50 62/58 NM50L
M63X1.5 37-44 20 63 72/64 NM63L
