Multi Hole Brass Cable Gland BMHM

  • Multi Hole Brass Cable Gland
  • Multi Hole Brass Cable Gland
Category:

Multi Hole Brass Cable Gland IP68

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

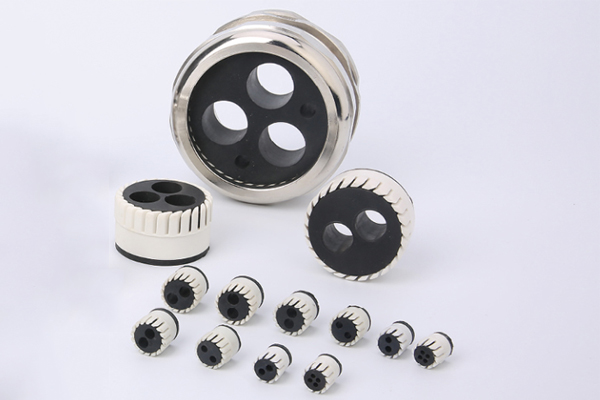

Multi hole brass cable gland (2~8 holes)

(In mm)

Item Single Hole M2 M3 M4 M5 M6 M7 M8 Item No.
M12X1.5 / 3-1.2 2.6-1.2 2.3-1 / / BMHM12
M16X1.5 / 4-1.6 2.6-1.2 2.3-1 2.5-1 2-1 / / BMHM16
M18X1.5 6*10 3.5-2 4-1.6 3-1.2 2.6-1.5 2.2-1 / / BMHM18
M20X1.5 5*11.5 5.3-1.5 5-2 4.2-1.7 3-1.2 3-1.2 3-1.2 3-1.2 BMHM20
M22X1.5 6*14 6-2.5 3.5-1.5 4.5-2 3-1.2 3-1.2 3-1.2 / BMHM22
M25X1.5 6*14 8.7-4 8-4 5-2 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5 BMHM25
M27X1.5 7*18 8J-4.5 5-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5 BMHM27
M32X1.5 8*22 10-5 10-5 9-4.5 8.0-4.0 7-3.5 6-3 / BMHM32
M37X1.5 / 9-6 / 9-6 / 6.5-3.5 / / BMHM37
M40X1.5 / 15-12 / / 9-6 8-5 9-6 / BMHM40
M50X1.5 / / / / 5-3 / / / BMHM50
M63X1.5 / 17-14 18-15 / / / / / BMHM63
