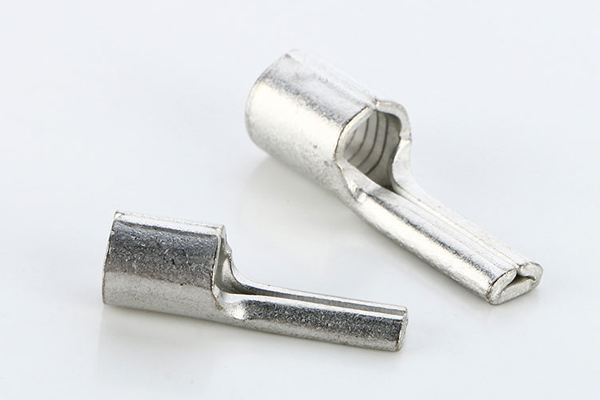

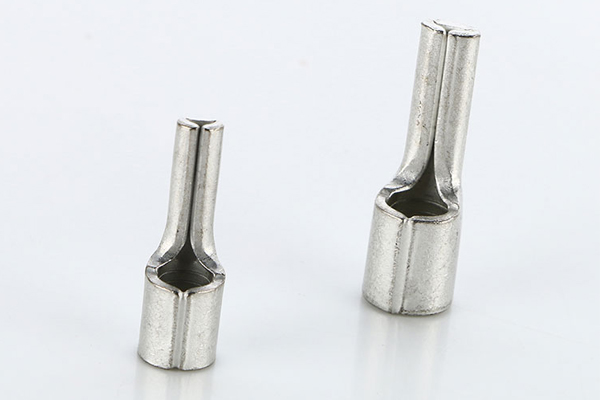

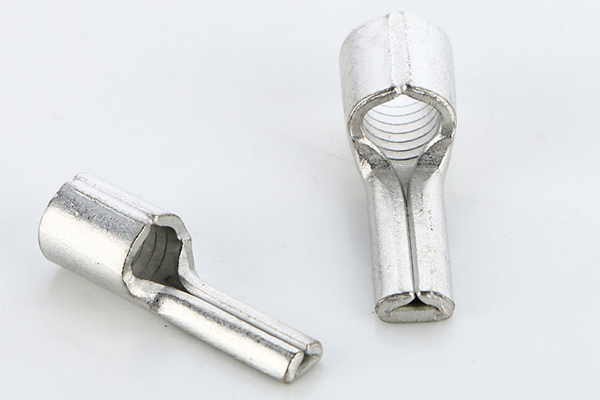

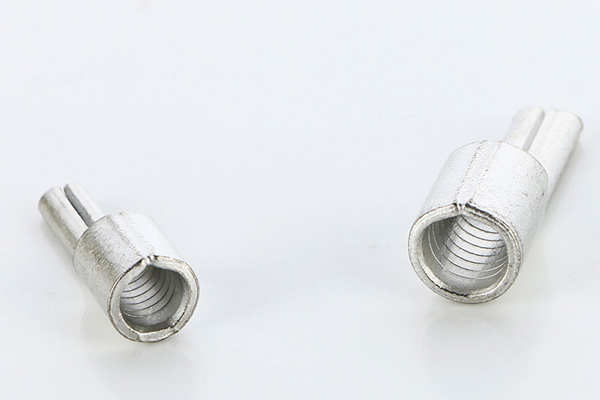

Non-Insulated Cable Terminals Electrical Lugs KS

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Non-Insulated Cable Terminals are made of the high-quality copper which ensures good conductivity at its user end. The Non-Insulated Cable Terminals are tin plated to provide excellent corrosion resistance.

(In mm)

Item No. D d B L W H T
KS10-12 22 8 4.3 4.5 6.9 2.4 1.1
KS16-13 26 10 5.5 5.9 8.4 2.6 1.2
KS25-15 33.5 13.5 6.8 7 9.5 2.6 1.2
KS35-20 40.5 16 8 8.7 11.8 3.2 1.5
KS50-20 45 19 9.5 9.8 13.6 3.8 1.8
KS70-25 55 24 11 11.6 15.8 4.2 2
KS95-25 55 24 12.5 13.7 18.9 5.2 2.5
KS120-34 62 26 14.3 15.1 21.3 6.2 3
