Non-Insulated Ring Terminals Wire Connector R

  • Non-Insulated Ring Terminals
  • Non-Insulated Ring Terminals
Category:

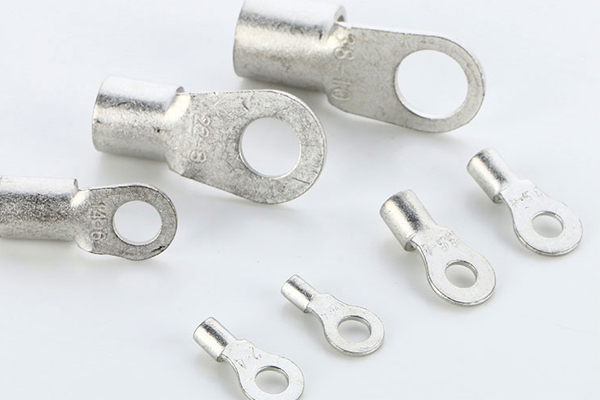

Non-Insulated Ring Terminals Wire Connector R Tin-plated Copper

Specification:

Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
Non-Insulated Ring Terminals can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on

Insulated square:0.5~1.5mm2(AWG22~16)Max. current: lmax=19A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R1.25-3 #4 3.2mm 5.5 12.5 5 4.8 3.4 1.7
RS1.25-3.5 #6 3.7mm 5.5 12.5 5
RM1.25-3.5 #6 3.7mm 6.6 14.4 6.3
RL1.25-3.5 #6 3.7mm 8 15.8 7
RS1.25-4 #8 4.3mm 6.6 14.4 6.3
RL1.25-4 #8 4.3mm 8 15.8 7
R1.25-5 #10 5.3mm 8 15.8 7
RL1.25-5 #10 5.3mm 9.8 18 8.5
RS1.25-6 1/4 6.4mm 9.8 18 8.5
RL1.25-6 1/4 6.4mm 11.6 21.8 11
R1.25-8 5/16 8.4mm 11.6 21.8 11
R1.25-10 3/8 10.5mm 13.6 25.5 13.9
R1.25-12 1/2 13.0mm 19.2 30.4 16
 Insulated square:1.25~2.5mm2(AWG16~14)Max. current: lmax=27A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R2-3 #4 3.2mm 6.6 12.8 4.8 4.8 4.1 2.3
RS2-3.5 #6 3.7mm 6.6 12.8 4.8
RM2-3.5 #6 3.7mm 6.6 14 6.3
RL2-3.5 #6 3.7mm 8.5 16.5 7.4
RS2-4 #8 4.3mm 6.6 14.4 6.3
RL2-4 #8 4.3mm 8.5 16.5 7.4
RS2-5 #10 5.3mm 8.5 16.5 7.4
RL2-5 #10 5.3mm 9.5 17 7.4
R2-6 1/4 6.5mm 12 21.8 11
R2-8 5/16 8.4mm 12 21.8 11
R2-10 3/8 10.5mm 13.6 25.5 13.9
R2-12 1/2 13.0mm 19.2 30.4 16
Insulated square:2.5~4mm2(AWG14~12)Max. current: lmax=37A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R3.5-4 #8 4.3mm 8 18 7.7 6 5 3
RS3.5-5 #10 5.3mm 8 18 7.7
RL3.5-5 #10 5.3mm 12 21.4 7.7
R3.5-6 1/4 6.4mm 12 21.4 7.7
R3.5-8 3/16 8.4mm 15 27 13.5
R3.5-10 3/8 10.5mm 15 27 13.5
 Insulated square:4~6mm2(AWG12~10)Max. current: lmax=48A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R5.5-3.5 #6 3.7mm 7.2 15.7 6.1 6.8 5.6 3.4
RS5.5-4 #8 4.3mm 7.2 15.7 6.1
RL5.5-4 #8 4.3mm 9.5 19 8.3
R5.5-5 #10 5.3mm 9.5 19 8.3
R5.5-6 1/4 6.5mm 12 22.5 10.5
R5.5-8 5/16 8.4mm 15 27 13.3
R5.5-10 3/8 10.5mm 15 27 13.3
R5.5-12 1/2 13.0mm 19.2 31.6 16
Insulated square:6~10mm2(8)Max. current: lmax=62A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R8-4 #8 4.3mm 8.8 23.8 9.3 8.5 7.2 4.5
RS8-5 #10 5.3mm 8.8 23.8 10.5
RM8-5 #10 5.3mm 12 23.8 9.3
RL8-5 #10 5.3mm 15 29.8 13.8
RS8-6 1/4 6.5mm 12 23.8 9.3
RL8-6 1/4 6.5mm 15 29.8 13.8
R8-8 5/16 8.4mm 15 29.8 13.8
R8-10 3/8 10.5mm 15 29.8 13.8
R8-12 1/2 13.0mm 20 33.5 15
Insulated square:10~16mm2(6)Max. current: lmax=88A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R14-4 #8 4.3mm 12 29.8 13.3 10.5 9 5.8
R14-5 #10 5.3mm 12 29.8 13.3
RS14-6 1/4 6.4mm 12 29.8 13.3
RL14-6 1/4 6.4mm 16 32.8 13.3
R14-8 5/16 8.4mm 16 32.8 14.5
R14-10 3/8 10.5mm 16 32.8 14.5
R14-12 1/2 13.0mm 22 41 19.5
 Insulated square:16~25mm2(4)Max. current: lmax=115A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
RS22-5 #10 5.3mm 12.2 33.2 15.1 12 11.5 7.7
RL22-5 #10 5.3mm 16.5 33.5 13.5
RS22-6 1/4 6.5mm 12.2 33 15.1
RL22-6 1/4 6.5mm 16.5 33.5 13.5
R22-8 5/16 8.4mm 16.5 33.5 16.5
R22-10 3/8 10.5mm 16.5 33.5 16.5
R22-11 7/16 11.5mm 22 42.5 19.7
R22-12 1/2 13.0mm 22 42.5 19.7
 Insulated square:35~50mm2(2)Max. current: lmax=160A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R38-5 #10 5.3mm 15.3 39 17.4 14 13.3 9.4
R38-6 1/4 6.4mm 15.3 39 17.4
RS38-8 5/16 8.4mm 15.3 39 17.4
RL38-8 5/16 8.4mm 22 42.7 17.7
RS38-10 3/8 10.5mm 15.3 39 17.4
RL38-10 3/8 10.5mm 22 42.7 17.7
R38-11 7/16 11.5mm 22 42.7 17.7
R38-12 1/2 13.0mm 22 42.7 17.7
 Insulated square:50~70mm2(AWG1/0)Max. current: lmax=215A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R60-6 1/4 6.5mm 22 49.7 20.7 18 15.4 11.4
R60-8 5/16 8.4mm
R60-10 3/8 10.5mm
R60-12 1/2 13.0mm
R60-14 9/16 15.0mm 32 57.5 23.5
R60-16 5/8 17.0mm
R60-18 11/16 19.0mm
R60-20 3/4 21.0mm
Insulated square:70~95mm2(AWG2/0) Max. current: lmax=235A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R70-6 1/4 6.5mm 24 50 20 19 17.5 13
R70-8 5/16 8.4mm
R70-10 3/8 10.5mm
R70-12 1/2 13.0mm
R70-14 9/16 15.0mm 32 61 26
R70-16 5/8 17.0mm
R70-18 11/16 19.0mm
R70-20 3/4 21.0mm
Insulated square:95~120mm2(AWG3/0)Max. current: lmax=255A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R80-6 1/4 6.5mm 22 53.5 20.7 20 19.5 14.5
R80-8 5/16 8.4mm
R80-10 3/8 10.5mm
R80-12 1/2 13.0mm
R80-14 9/16 15.0mm 32 68 32
R80-16 5/8 17.0mm
R80-18 11/16 19.0mm
R80-20 3/4 21.0mm
 Insulated square:120~150mm2(AWG4/0) Max. current: lmax=300A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R100-6 1/4 6.5mm 28.5 55.6 20.4 21 22.1 16.4
R100-8 5/16 8.4mm
R100-10 3/8 10.5mm
R100-12 1/2 13.0mm
R100-14 9/16 15.0mm 32 69 32
R100-16 5/8 17.0mm
R100-18 11/16 19.0mm
R100-20 3/4 21.0mm
Insulated square:150~185mm2(250/300MCM)Max. current: lmax=395A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R150-8 5/16 8.4mm 36 66 23 27 26.6 19.5
R150-10 3/8 10.5mm
R150-12 1/2 13.0mm
R150-14 9/16 15.0mm
R150-16 5/8 17.0mm
R150-18 11/16 19.0mm 36 81 36
R150-20 3/4 21.0mm
R150-22 7/8 23.0mm
R150-24 15/16 25.0mm
Insulated square:185~240mm2(300/350MCM)Max. current: lmax=440A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R180-8 5/16 8.4mm 38.5 69 24.5 28.5 28.6 21
R180-10 3/8 10.5mm
R180-12 1/2 13.0mm
R180-14 9/16 15.0mm
R180-16 5/8 17.0mm
R180-18 11/16 19.0mm 38.5 86 39
R180-20 3/4 21.0mm
R180-22 7/8 23.0mm
R180-24 15/16 25.0mm
Insulated square:240~300mm2(400/500MCM)Max. current: lmax=470A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R200-8 5/16 8.4mm 44 72 24.5 31.5 32.6 24
R200-10 3/8 10.5mm
R200-12 1/2 13.0mm
R200-14 9/16 15.0mm
R200-16 5/8 17.0mm
R200-18 11/16 19.0mm 44 91 37.5
R200-20 3/4 21.0mm
R200-22 7/8 23.0mm
R200-24 15/16 25.0mm
Insulated square:300~400mm2(500/600MCM)Max. current: lmax=650A
Item No DIMENSION
American bolt number Dia.of bolt
d2φ
B
mm
L
mm
F
mm
H
mm

mm

mm
R325-8 5/16 8.4mm 50.5 88 33.5 35.5 37.1 28
R325-10 3/8 10.5mm
R325-12 1/2 13.0mm
R325-14 9/16 15.0mm
R325-16 5/8 17.0mm
R325-18 11/16 19.0mm 50.5 105.7 45
R325-20 3/4 21.0mm
R325-22 7/8 23.0mm
R325-24 15/16 25.0mm
