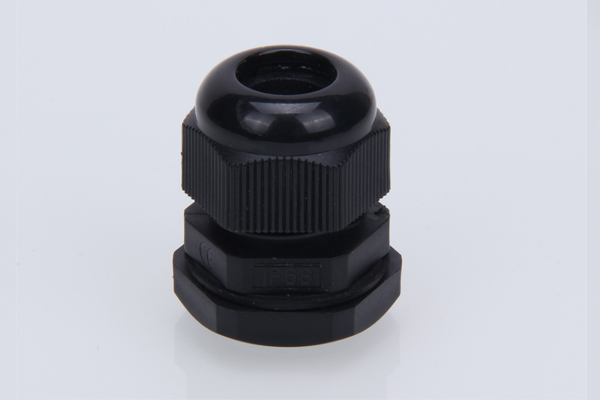

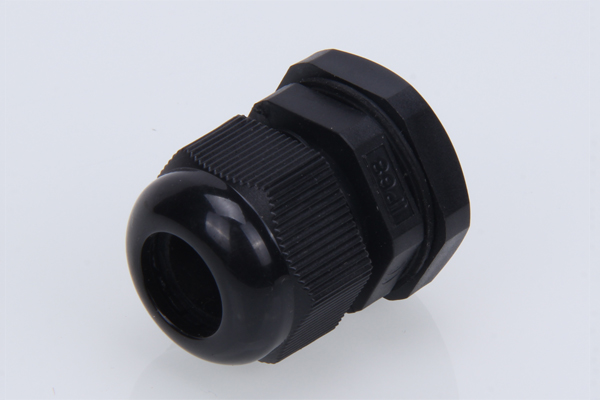

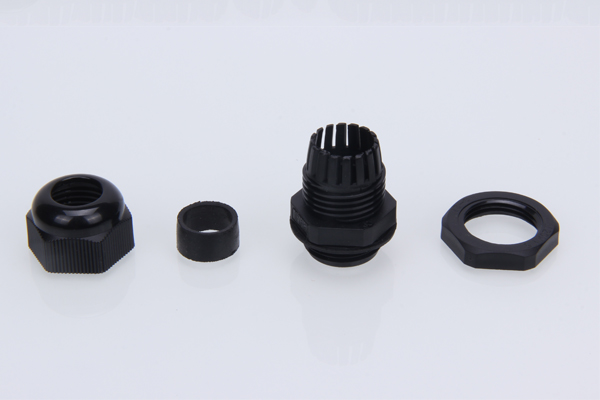

Nylon Cable Glands Watertight NPG

  • Nylon Cable Glands
  • PG Lengthen Cable Gland
  • Nylon Cable Gland
  • Nylon Cable Gland
Category:

Nylon Cable Glands Water Resistant IP68

Specification:

Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Spanner size Item No.
PG7 3-6.5 9 12.5 18/16 NPG7
PG9 4-8 9 15.2 22/19 NPG9
PG11 5-10 9 18.6 24/22 NPG11
PG13.5 6-11 10 20.4 27/24 NPG13.5
PG16 10-13 10 22.5 30/27 NPG16
PG21 13-18 12 28.3 35/33 NPG21
PG29 18-25 12 37.0 45/42 NPG29
PG36 22-32 15 47.0 58/52 NPG36
PG42 32-38 18 54.0 62/58 NPG42
PG48 37-44 18 59.3 70/64 NPG48
