Nylon IP68 Cable Gland Spiral Support NNZM/PG

Nylon IP68 Cable Gland Spiral Support
Category:

Nylon IP68 Cable Gland Spiral Support

Specification:

Material:
Nylon 66
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, REACH approved

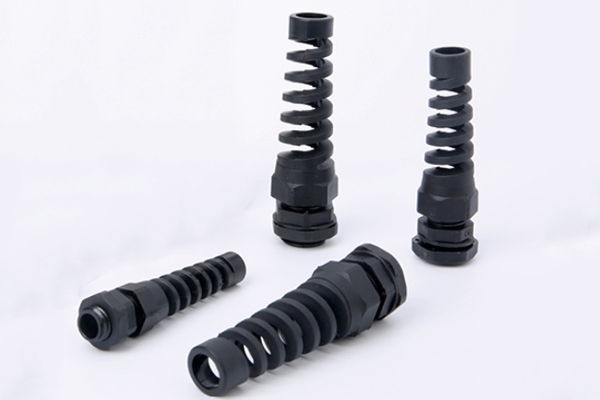

Reliable bending and anti-kink protection. The cable glands have the added feature of a spiral cable support which reduces the possibility of damage to the cable caused by pulling.

(In mm)

Item Range Thread Length
GL
Mounting hole Joint Length
H
Spanner size Item No.
M 12×1.5 3-6.5 6.5 12 65 14 NNZM12
M16x1.5 4-8 8 16 75 18 NNZM16
M 18×1.5 5-10 8 18 77 20 NNZM18
M20x1.5 6-12 8 20 80 22 NNZM20
M22x1.5 10-14 8 22 98 24 NNZM22
M25x1.5 13-18 9 25 90 27 NNZM25
M30x1.5 13-18 9 25 100 30 NNZM30
PG7 3-6.5 6.5 12.5 65.0 14/15 NNZPG7
PG9 4-8 8 15.2 68.0 17/18 NNZPG9
PG11 5-10 8 18.6 75.0 20/21 NNZPG11
PG13.5 6-12 8 20.4 75.0 22/23 NNZPG13.5
PG16 10-14 8 22.5 80.0 24/25 NNZPG16
PG21 13-18 9 28.3 100.0 30 NNZPG21
