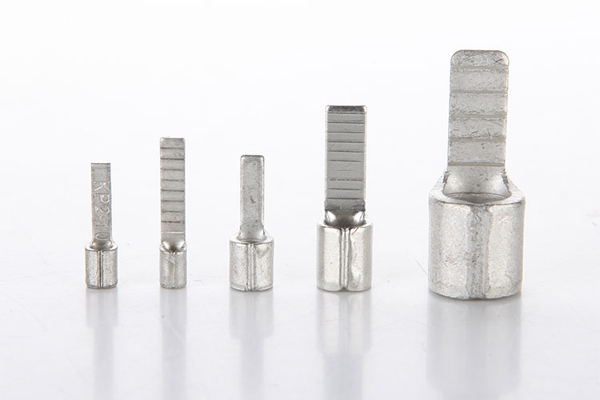

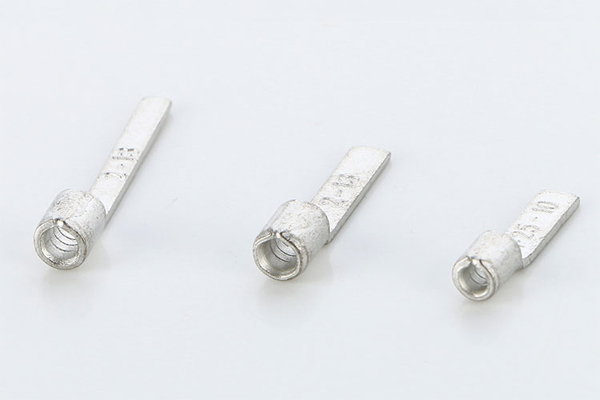

Non-Insulated PIN Connectors Non-insulated Crimp PIN Wire Connector PIN

Specification:

Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
PIN Connectors can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on

Insulated square:0.5~1.5mm²(AWG22~16) Max. current: lmax=19A

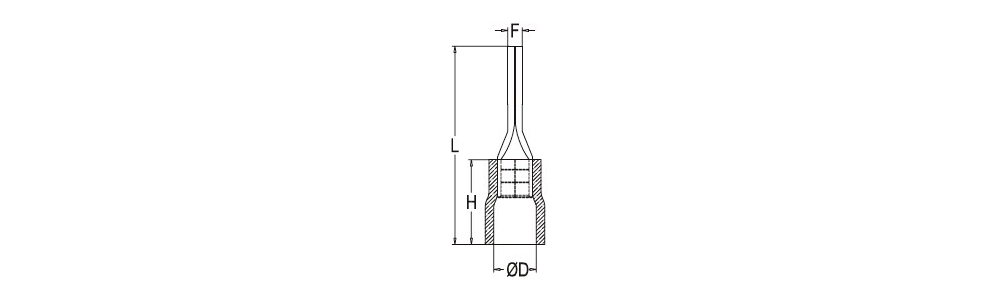

Item No DIMENSION
L E
mm mm mm mm mm
PIN1.25-9 1.9 13.8 9 3.4 1.7
PIN1.25-10 1.9 14.8 10
PIN1.25-12 1.9 16.8 12
PIN1.25-13 1.9 17.8 13
PIN1.25-18 1.9 22.8 18
Insulated square:1.5~2.5mm²(AWG16~14) Max. current: lmax=27A
 Item No DIMENSION
L E
mm mm mm mm mm
PIN2-9 1.9 13.8 9 4.1 2.3
PIN2-10 1.9 14.8 10
PIN2-12 1.9 16.8 12
PIN2-13 1.9 17.8 13
PIN2-18 1.9 22.8 18
Insulated square:2.5~4mm²(AWG14~12) Max. current: lmax=37A
 Item No DIMENSION
L E
mm mm mm mm mm
PIN3.5-10 2.8 14.8 10 5 3
PIN3.5-13 2.8 19.8 13 5 3
Insulated square:4~6mm²(AWG12~10) Max. current: lmax=48A
Item No DIMENSION
L E
mm mm mm mm mm
PIN5.5-13 2.8 19.8 13 5.6 3.4
