Insulated PIN Terminal Terminals Insulated Funnel Entry Wire Connector PINF

Specification:

Material: Copper, Tin-plated copper
Insulated Material: PVC
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated PIN Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

Insulated square:0.5~1.5mm²(AWG22~16)Max. current: lmax=19A

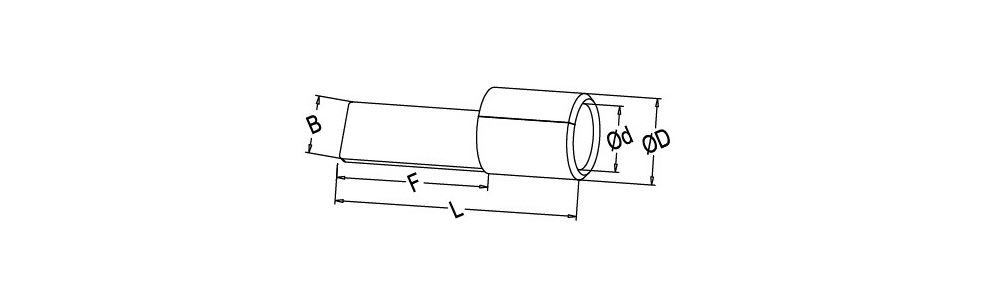

Item No DIMENSION Color
PVC Nylon L H Red
PINF1.25-9 PINF1.25-9N 1.9 19 11 4
PINF1.25-10 PINF1.25-10N 1.9 20 11 4
PINF1.25-12 PINF1.25-12N 1.9 22 11 4
PINF1.25-13 PINF1.25-13N 1.9 23 11 4
PINF1.25-18 PINF1.25-18N 1.9 28 11 4
Insulated square:1.5~2.5mm²(AWG16~14)Max. current: lmax=27A
Item No DIMENSION Color
PVC Nylon L H Blue
PINF2-9 PINF2-9N 1.9 19 11 4.5
PINF2-10 PINF2-10N 1.9 20 11 4.5
PINF2-12 PINF2-12N 1.9 22 11 4.5
PINF2-13 PINF2-13N 1.9 23 11 4.5
PINF2-18 PINF2-18N 1.9 28 11 4.5
Insulated square:2.5~4mm²(AWG14~12)Max. current: lmax=37A
Item No DIMENSION Color
PVC Nylon L H Blue
PINF3.5-10 PINF3.5-10N 2.8 20.5 13.5 6.4
PINF3.5-13 PINF3.5-13N 2.8 25.5 13.5 6.4
Insulated square:4~6mm²(AWG12~10)Max. current: lmax=48A
Item No DIMENSION Color
PVC Nylon L H Yellow
PINF5.5-13 PINF5.5-13N 2.8 25.5 13.5 6.4
