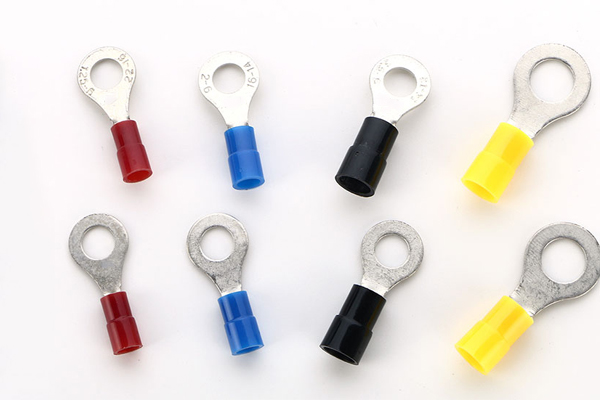

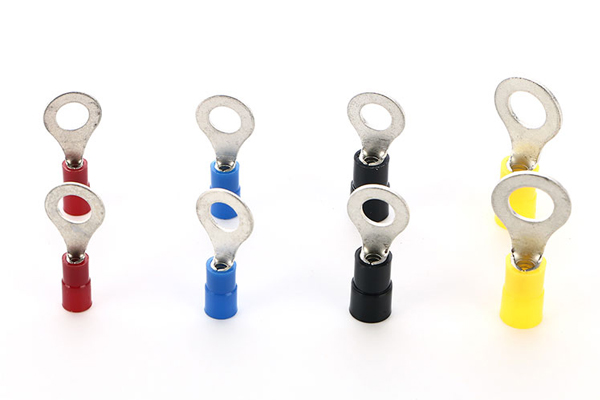

Nylon Insulated Ring Terminal Connector Wire Terminal BRFN

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Nylon, PA66
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 105℃ Heat-resistance
Nylon Insulated Ring Terminal Connector offers a termination security in high vibration areas with easy insert insulator, easy to process. hard connecting inside and groove construction. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance. Halogen-free, temperature up to 105 °C

Insulated Size of cable: 0.5-1.5mm²(AWG22-16) Max.Current=19A
Item No . DIMENSION color
America Dia. of bolt B L F H
Bolt no. d2 mm mm mm mm mm
BRF1.25-3N #4 3.2mm 5.5 18.5 5 11 4 Red
BRFS1.25-3.5N #6 3.7mm 5.7 18.5 5
BRFM1.25-3.5N #6 3.7mm 6.6 20.4 6.3
BRFL1.25-3.5N #6 3.7mm 8 21.8 7
BRFS1.25-4N #8 4.3mm 6.6 20.4 6.3
BRFL1.25-4N #8 4.3mm 8 21.8 7
BRFS1.25-5N #10 5.3mm 8 21.8 7
BRFL1.25-5N #10 5.3mm 11.6 27.8 11
BRFS1.25-6N 1/4 6.4mm 11.6 27.8 11
BRF1.25-6N 1/4 6.4mm 11.6 27.8 11
BRF1.25-8N 5/16 8.4mm 11.6 27.8 11
BRF1.25-10N 3-8 10.5mm 13.6 31.5 13.9
BRF1.25-12N 1-2 13.0mm 19.6 36.4 16
 Insulated Size of cable: 1.5-2.5mm²(AWG 16-14) Max.Current=27A
Item No . DIMENSION color
America Dia. of bolt B L F H
Bolt no. d2 mm mm mm mm mm
BRF2-3N #4 3.2mm 6.6 18.8 4.8 11 4.5 Blue
BRFS2-3.5N #6 3.7mm 6.6 18.8 4.8
BRFM2-3.5N #6 3.7mm 6.6 20.4 6.3
BRFL2-3.5N #6 3.7mm 8.5 22.8 7.4
BRFS2-4N #8 4.3mm 6.6 20.4 6.3
BRFL2-4N #8 4.3mm 8.5 22.8 7.8
BRFS2-5N #10 5.3mm 8.5 22.8 7.8
BRFL2-5N #10 5.3mm 9.5 22.8 7.3
BRF2-6N 1/4 6.5mm 12 27.8 11
BRF2-8N 5/16 8.4mm 12 27.8 11
BRF2-10N 3-8 10.5mm 13.6 31.5 13.9
BRF2-12N 1-2 13.0mm 19.2 36.4 16
Insulated square:2.5~4mm²(AWG14~12)Max. current: lmax=37A
Item No . DIMENSION color
America Dia. of bolt B L F H
Bolt no. d2 mm mm mm mm mm
BRF3.5-4N #8 4.3mm 8 24.5 7.7 13.5 6.4 Black
BRFS3.5-5N #10 5.3mm 8 24.5 7.7
BRFL3.5-5N #10 5.3mm 12 27.9 7.7
BRF3.5-6N 1/4 6.5mm 12 27.9 7.7
BRF3.5-8N 5/16 8.4mm 15 32 13.5
BRF3.5-10N 3-8 10.5mm 15 32 13.5
 Insulated Size of cable: 4-6mm²(American standar 12-10) Max.Current=48A
Item No . DIMENSION color
America Dia. of bolt B L F H
Bolt no. d2 mm mm mm mm mm
BRF5.5-3.5N #6 3.7mm 7.2 22.7 6.1 13.5 6.4 Yellow
BRFS5.5-4N #8 4.3mm 7.2 22.7 6.1
BRFL5.5-4N #8 4.3mm 9.5 26 8.3
BRF5.5-5N #10 5.3mm 9.5 26 8.3
BRF5.5-6N 1/4 6.5mm 12 29.5 10.5
BRF5.5-8N 5/16 8.4mm 15 34 13.3
BRF5.5-10N 3-8 10.5mm 15 34 13.3
BRF5.5-12N 1-2 13.0mm 19.2 38.6 16
