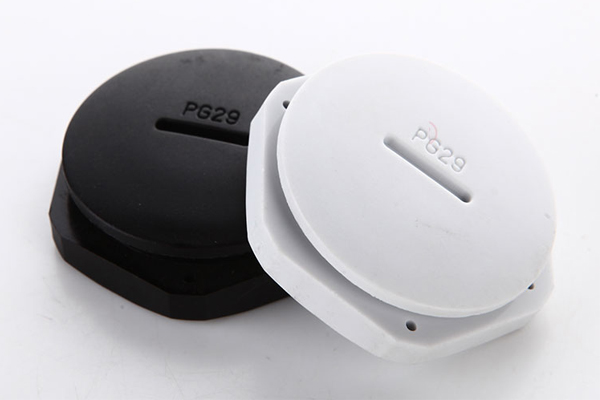

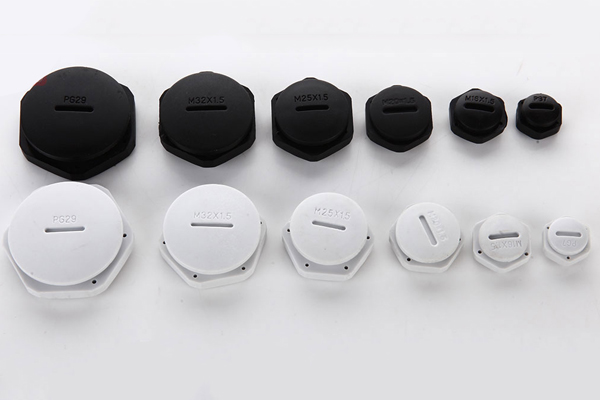

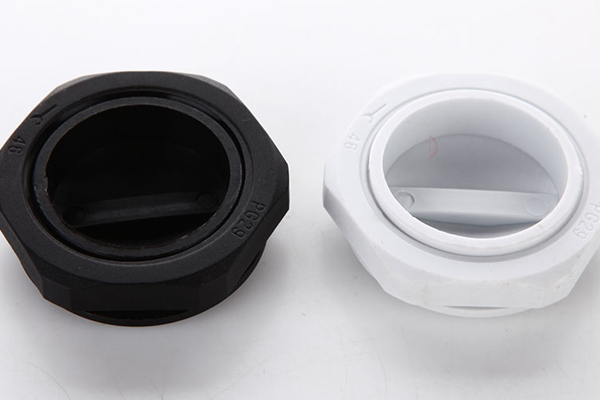

Screw Plug Plastic Nylon Hole Plug SP

Specification:

Thread: Metric, PG
Material: Nylon 66,
Protection grade: IP68, using the washer and in the cable range
Flammability: 94V-2
Certificate: UL
Color: White, Black, Available
Work T.:-40°C to 100°C,120°C in a short time.
common resistant, such as water, salty, alcohol, oil, grease and so on.
Note: This Screw Plug comes with locknut, but not including washer.

Item No. Thread Thread O.D. Panel Mounting Hole Thread Length Thread Length size Packing
A (mm) C (mm) H (mm) B (mm) PCS
Metric thread SP-M
SP-M12 M12*1.5 12 12-12.3 9 12.5 15 100PCS
SP-M16 M16*1.5 16 16-16.3 9 13 19
SP-M18 M18*1.5 18 18-18.3 9 13 22
SP-M20 M20*1.5 20 20-20.3 9 13 25
SP-M22 M22*1.5 22 22-22.3 10.5 15 27
SP-M25 M25*1.5 25 25-25.3 10.5 15.5 30 50PCS
SP-M27 M27*1.5 27 27-27.3 10.5 15.5 33
SP-M32 M32*1.5 32 32-32.3 10.5 16 38
SP-M40 M40*1.5 40 40-40.3 11.5 16 46 30PCS
SP-M50 M50*1.5 50 50-50.3 13.5 18 56
SP-M63 M63*1.5 63 63-63.3 14 19 68
Germany thread NSP-PG
SP-PG7 PG 7 12.5 12.5-12.8 9 12.2 15 100PCS
SP-PG9 PG 9 15.2 15.2-15.8 9 13 19
SP-PG11 PG 11 18.6 18.6-18.9 9 13 22
SP-PG13.5 PG 13.5 20.4 20.4-20.7 9 13 25
SP-PG16 PG 16 22.5 22.5-22.8 10.5 15 27
SP-PG21 PG 21 28.3 28.3-28.7 10.5 15 33 30PCS
SP-PG29 PG 29 37 37.0-37.4 11.5 16 44
SP-PG36 PG 36 47 47.0-47.4 13.5 18 55
SP-PG42 PG 42 54 54.0-54.4 13.5 18.5 62
SP-PG48 PG 48 59.3 59.3-59.7 14.5 19.5 68
