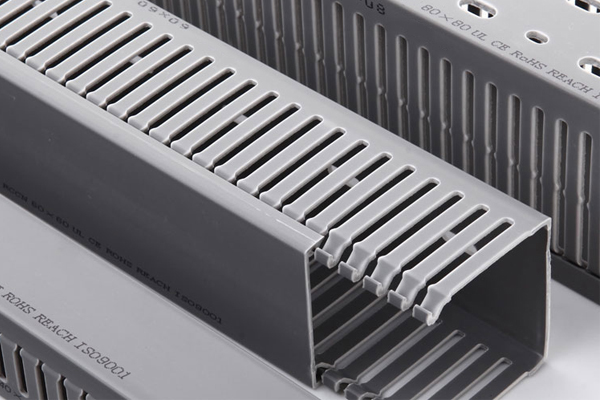

Finger Design PVC slotted Cable Trunking Cable Ducting 4mm*6mm
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.
| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BHVD1616F | 16*16 | 5 | 5 | 3~10pcs | 300M |
| BHVD2516F | 25*16 | 5 | 5 | 3~10pcs | 100M |
| BHVD1520F | 15*20 | 4 | 6 | 8~12pcs | 260M |
| BHVD2020F | 20*20 | 4 | 6 | 10~20pcs | 240M |
| BHVD4020F | 40*20 | 4 | 6 | 12~28pcs | 140M |
| BHVD1525F | 15*25 | 5 | 6 | 5~15pcs | 260M |
| BHVD2025F | 20*20 | 4 | 6 | 5~15pcs | 200M |
| BHVD2525F | 25*25 | 4 | 6 | 10~25pcs | 200M |
| BHVD3025F | 30*25 | 4 | 6 | 12~28pcs | 160M |
| BHVD4025F | 40*25 | 4 | 6 | 12~28pcs | 100M |
| BHVD5025F | 50*25 | 4 | 6 | 20~30pcs | 100M |
| BHVD1530F | 15*30 | 4 | 6 | 20~30pcs | 180M |
| BHVD2030F | 20*30 | 4 | 6 | 20~30pcs | 160M |
| BHVD2530F | 25*30 | 4 | 6 | 25~35pcs | 160M |
| BHVD3030F | 30*30 | 4 | 6 | 25~35pcs | 140M |
| BHVD4030F | 40*30 | 4 | 6 | 30~40pcs | 100M |
| BHVD5030F | 50*30 | 4 | 6 | 35~45pcs | 80M |
| BHVD6030F | 60*30 | 4 | 6 | 40~50pcs | 60M |
| BHVD2233F | 22*33 | 5 | 6 | 30~45pcs | 160M |
| BHVD3333F | 33*33 | 4 | 6 | 35~45pcs | 160M |
| BHVD2035F | 20*35 | 4 | 6 | 30~40pcs | 100M |
| BHVD3535F | 35*35 | 4 | 6 | 35~45pcs | 112M |
| BHVD5035F | 50*35 | 4 | 6 | 40~60pcs | 88M |
| BHVD2040F | 20*40 | 4 | 6 | 16~22pcs | 110M |
| BHVD2540F | 25*40 | 4 | 6 | 20~25pcs | 112M |
| BHVD3540F | 35*40 | 4 | 6 | 50~60pcs | 100M |
| BHVD4040F | 40*40 | 4 | 6 | 60~70pcs | 100M |
| BHVD6040F | 60*40 | 4 | 6 | 100~115pcs | 68M |
| BHVD8040F | 80*40 | 4 | 6 | 120~135pcs | 48M |
| BHVD10040F | 100*40 | 4 | 6 | 120~135pcs | 32M |
| BHVD12040F | 120*40 | 4 | 6 | 140-155pcs | / |
| BHVD2545F | 25*45 | 4 | 6 | 20~25pcs | 104M |
| BHVD3345F | 33*45 | 4 | 6 | 40~55pcs | 108M |
| BHVD4545F | 45*45 | 4 | 6 | 60~70pcs | 72M |
| BHVD6545F | 65*45 | 4 | 6 | 110~120pcs | 56M |
| BHVD2050F | 20*50 | 4 | 6 | 18~28pcs | 100M |
| BHVD2550F | 25*50 | 4 | 6 | 20~30pcs | 100M |
| BHVD3050F | 30*50 | 4 | 6 | 25~40pcs | 84M |
| BHVD3550F | 35*50 | 4 | 6 | 40~60pcs | 80M |
| BHVD4050F | 40*50 | 4 | 6 | 60~70pcs | 68M |
| BHVD4550F | 45*50 | 4 | 6 | 70~80pcs | 60M |
| BHVD5050F | 50*50 | 4 | 6 | 80~90pcs | 50M |
| BHVD5550F | 55*50 | 4 | 6 | 80~90pcs | 48M |
| BHVD6050F | 60*50 | 4 | 6 | 100~120pcs | 48M |
| BHVD7550F | 75*50 | 4 | 6 | 120~140pcs | 40M |
| BHVD8050F | 80*50 | 4 | 6 | 160~180pcs | 40M |
| BHVD10050F | 100*50 | 4 | 6 | 200~250pcs | 26M |
| BHVD12555F | 125*55 | 4 | 6 | 220~270pcs | 20M |
| BHVD2060F | 20*60 | 4 | 6 | 35~45pcs | 100M |
| BHVD2560F | 25*60 | 4 | 6 | 40~50pcs | 100M |
| BHVD3060F | 30*60 | 4 | 6 | 60~80pcs | 80M |
| BHVD3560F | 35*60 | 4 | 6 | 90~105pcs | 78M |
| BHVD4060F | 40*60 | 4 | 6 | 100~115pcs | 60M |
| BHVD4560F | 45*60 | 4 | 6 | 110~125pcs | 30M |
| BHVD5060F | 50*60 | 4 | 6 | 120~135pcs | 60M |
| BHVD6060F | 60*60 | 4 | 6 | 120~135pcs | 48M |
| BHVD8060F | 80*60 | 4 | 6 | 180~210pcs | 36M |
| BHVD10060F | 100*60 | 4 | 6 | 240~290pcs | 28M |
| BHVD11060F | 110*60 | 4 | 6 | 250~300pcs | 48M |
| BHVD12060F | 120*60 | 4 | 6 | 260~320pcs | 48M |
| BHVD15060F | 150*60 | 4 | 6 | 300~360pcs | 16M |
| BHVD2565F | 25*65 | 4 | 6 | 40~50pcs | 88M |
| BHVD3365F | 33*65 | 4 | 6 | 40~70pcs | 80M |
| BHVD4565F | 45*65 | 4 | 6 | 110~120pcs | 52M |
| BHVD6565F | 65*65 | 4 | 6 | 180~200pcs | 44M |
| BHVD7265F | 72*65 | 4 | 6 | 180~230pcs | 42M |
| BHVD2575F | 25*75 | 4 | 6 | 180-210pcs | / |
| BHVD3575F | 35*75 | 4 | 6 | 180-210pcs | / |
| BHVD5075F | 50*75 | 4 | 6 | 180~210pcs | 42M |
| BHVD7575F | 75*75 | 4 | 6 | 200~240pcs | 40M |
| BHVD10075F | 100*75 | 4 | 6 | 240~280pcs | 24M |
| BHVD2580F | 25*80 | 4 | 6 | 100~120pcs | 72M |
| BHVD3080F | 30*80 | 4 | 6 | 110~125pcs | 56M |
| BHVD3580F | 35*80 | 4 | 6 | 110~130pcs | 56M |
| BHVD4080F | 40*80 | 4 | 6 | 140~160pcs | 48M |
| BHVD4580F | 45*80 | 4 | 6 | 140~160pcs | 40M |
| BHVD5080F | 50*80 | 4 | 6 | 160~180pcs | 40M |
| BHVD5580F | 55*80 | 4 | 6 | 160~180pcs | 32M |
| BHVD6080F | 60*80 | 4 | 6 | 180~210pcs | 32M |
| BHVD8080F | 80*80 | 4 | 6 | 240~290pcs | 24M |
| BHVD10080F | 100*80 | 4 | 6 | 260~350pcs | 24M |
| BHVD12080F | 120*80 | 4 | 6 | 280~380pcs | 16M |
| BHVD14080F | 140*80 | 4 | 6 | 350~450pcs | 16M |
| BHVD16080F | 160*80 | 4 | 6 | 50-550pcs | / |
| BHVD25100F | 25*100 | 4 | 6 | 110~160pcs | 60M |
| BHVD33100F | 33*100 | 4 | 6 | 130~175pcs | 44M |
| BHVD40100F | 40*100 | 4 | 6 | 130~175pcs | 40M |
| BHVD50100F | 50*100 | 4 | 6 | 220~250pcs | 40M |
| BHVD60100F | 60*100 | 4 | 6 | 240~290pcs | 32M |
| BHVD70100F | 70*100 | 4 | 6 | 250~310pcs | 24M |
| BHVD75100F | 75*100 | 4 | 6 | 260~350pcs | 24M |
| BHVD80100F | 80*100 | 4 | 6 | 260~350pcs | 24M |
| BHVD100100F | 100*100 | 4 | 6 | 300~400pcs | 24M |
| BHVD120100F | 120*100 | 4 | 6 | 350~450pcs | 16M |
| BHVD150100F | 150*100 | 4 | 6 | 400~650pcs | 16M |
| BHVD150130F | 150*130 | 4 | 6 | 400~650pcs | 16M |
| BHVD160100F | 160*100 | 4 | 6 | 500-750pcs | / |
| BHVD100130F | 100*130 | 4 | 6 | 350-450pcs | / |
| BHVD200100F | 200*100 | 4 | 6 | 600~800pcs | 16M |
| BHVD200150F | 200*150 | 4 | 6 | 900-1200pcs | 16M |
| BHVD200200F | 200*200 | 4 | 6 | 1200-1600pcs | 16M |
