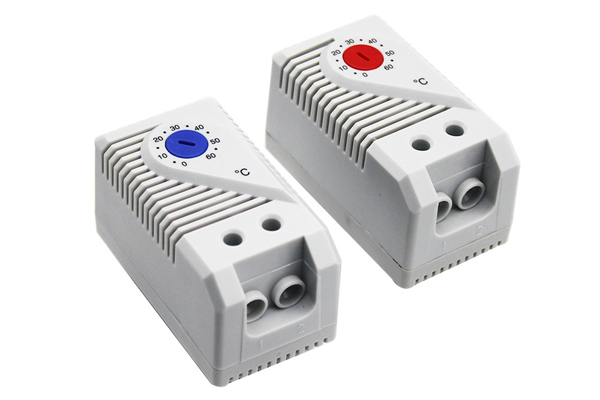

Small Compact Thermostat KTS 011 / KTO 011

  • Thermostat KTS 011
  • Thermostat KTS 011
Category:

Small Compact Thermostat KTS 011 / KTO 011

Specification:

Switch temperature difference: Silicon Rubber, NBR
Sensor element: Thermostatic bimetal
Contact type: Snap-action contact
Service life: > 100,000 cycles
Max. switching capacity: 250VAC, 10 (2) A / 120VAC, 15 (2) A, DC 30W at 24VDC to 72VDC

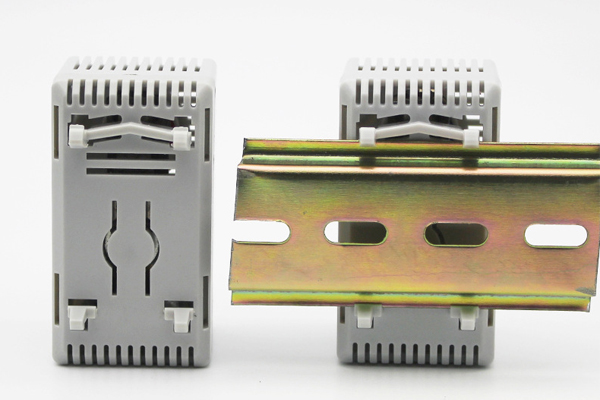

Mounting: Clipping for 35mm DIN rail
Casing: Plastic according to UL94 V-0, light grey
Dimensions: 60 x 33 x 43mm
Weight: 40g
Working Temperature: -45 to +80°C
Working humidity: max. 90% RH
Protection Rating: IP20

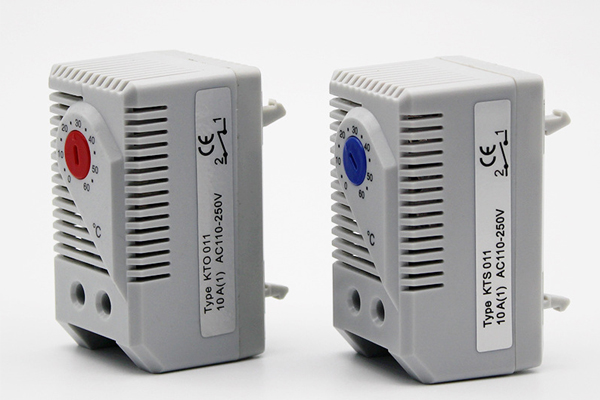

KTO 011: Thermostat (normally closed), The contact opens when the temperature is rising.
KTS  011: Thermostat (normally open), The contact closes when the temperature is rising.
