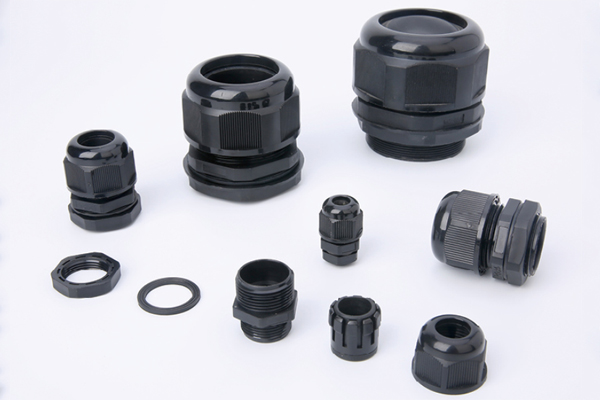

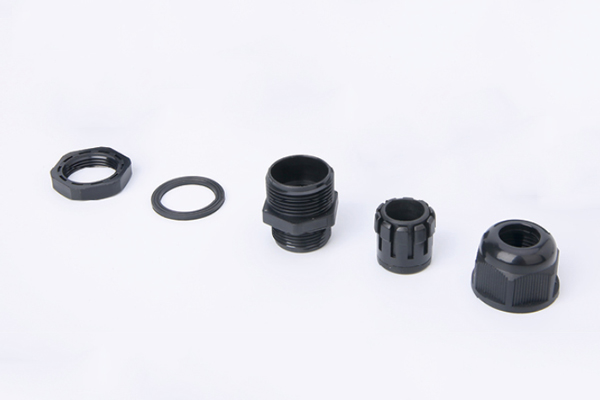

Split Cable Gland Nylon 66 NMPG

  • Split Cable Gland
  • Split Cable Gland
Category:

Split Cable Gland Nylon 66 Water-proof IP68

Specification:

Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Spanner Size Item No.
MPG7 4-8 8.5 12.5 17/19 NMPG7-8
3-6.5 8.5 12.5 17/19 NMPG7-6.5
3-6.7 8.5 12.5 17/19 NMPG7-6.7
3-5.5 8.5 12.5 17/19 NMPG7-5.5
MPG9 4-8 8.5 15.2 22/19 NMPG9-8
3-5.5 8.5 15.2 22/19 NMPG9-5.5
MPG11 6-10 10 18.6 24/22 NMPG11-10
2-5 10 18.6 24/22 NMPG11-5
4-7 10 18.6 24/22 NMPG11-7
MPG13.5 7-12.5 10 20.4 27/24 NMPG13.5-12.5
6-10.5 10 20.4 27/24 NMPG13.5-10.5
5-9 10 20.4 27/24 NMPG13.5-9
MPG16 8.5-14 10.8 22.5 30/27 NMPG16-14
6-11 10.8 22.5 30/27 NMPG16-11
MPG21 12.5-18 12 28.3 36/33 NMPG21-18
10-16 12 28.3 36/33 NMPG21-16
MPG29 18-25 15 37 46/41 NMPG29-25
15-22 15 37 46/41 NMPG29-22
MPG36 24-32 15 47 57/50 NMPG36-32
20-26 15 47 57/50 NMPG36-26
MPG42 31-41 15.5 54 64/62 NMPG36-41
26-32 15.5 54 64/62 NMPG36-32
