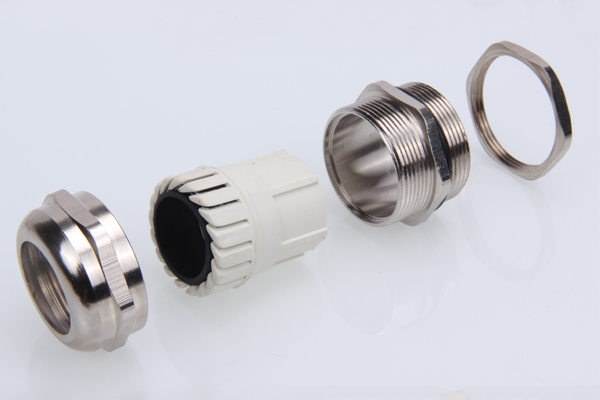

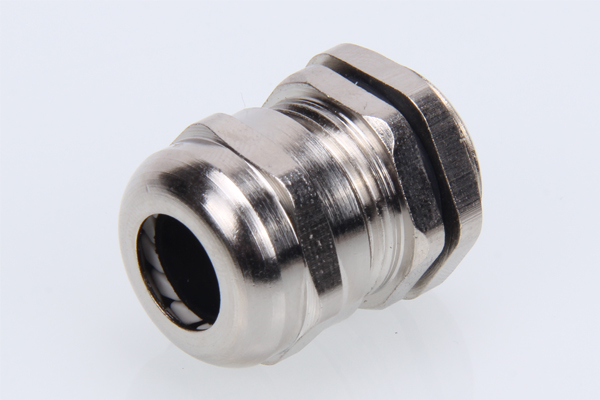

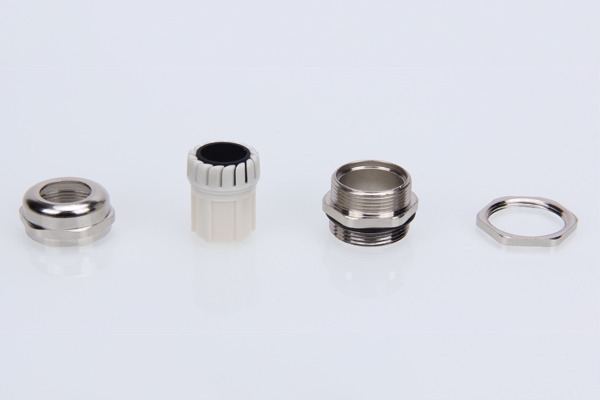

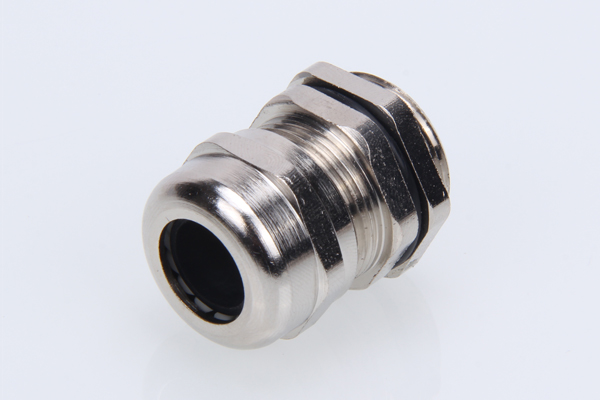

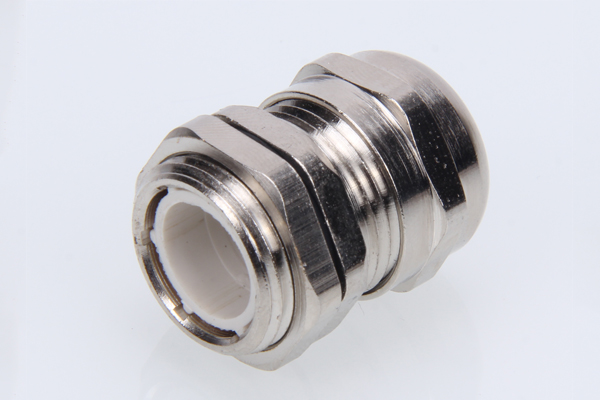

Straight Head Brass Cable Gland BDM

  • Straight Head Brass Cable Gland
  • Straight Brass Cable Gland
Category:

Straight Head Brass Cable Gland Waterproof

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Joint Length
H
Spanner size Item No.
M12X1.5 3-6.5 6.5 12 17 14 BDM12
M16X1.5 4-8 8 16 19 18 BDM16
M18X1.5 5-10 8 18 21 20 BDM18
M20X1.5 6-12 8 20 22 22 BDM20
M22X1.5 10-14 8 22 23 24 BDM22
M25X1.5 10-14 9 25 25 24/27 BDM25-14
M25X1.5 13-18 9 25 27 30/27 BDM25-18
M27X1.5 13-18 9 27 27 30 BDM27
M32X1.5 15-22 10 32 29 35 BDM32
M36X1.5 18-25 10 36 31 40 BDM36
M40X1.5 18-25 10 40 31 40/45 BDM40-25
M40X1.5 22-30 10 40 35 45 BDM40-30
M48X1.5 25-33 10 48 37 50/52 BDM48
M50X1.5 32-38 10 50 37 57/55 BDM50
M63X1.5 37-44 10 63 38 64/68 BDM63
M72X2 42-52 10 72 44 78 BDM72
M80X2 55-60 15 80 45 88 BDM80
