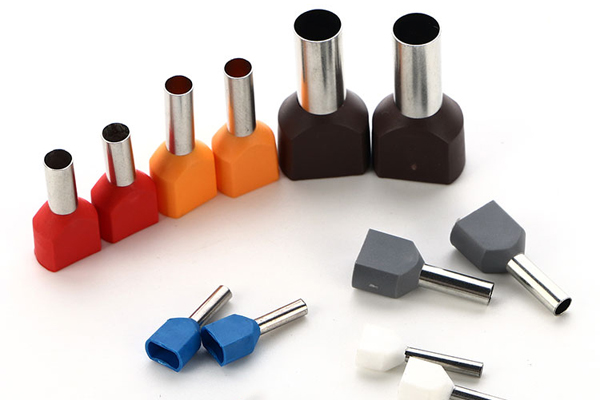

Insulated Twin Cord End Terminals Wire Connector Tin-plated copper BEW

Specification:

Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Limited Working Temperature: -14℃ to 105℃ Ui=300V
Twin Cord End Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

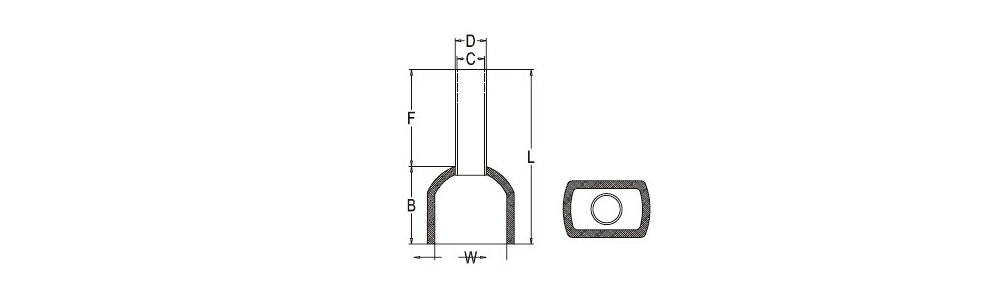

Item No.        DIMENSION  Insulated square
mm²
    Color
F L W B France Germany
BEW 0.5-8 8 15 5 7 1.8 1.5 2 x 0.5 White White
BEW 0.75-8 8 15.8 5.3 7.8 2.1 1.8 2 x 0.75 Blue Gray
BEW 0.75-10 10 17.8 5.3 7.8 2.1 1.8 2 x 0.75 Blue Gray
BEW 1.0-8 8 16 5.3 8 2.4 2.1 2 x 1.0 Red Red
BEW 1.0-10 10 18 5.3 8 2.4 2.1 2 x 1.0 Red Red
BEW 1.5-8 8 16 6.2 8 2.6 2.3 2 x 1.5 Black Yellow
BEW 1.5-12 12 20 6.2 8 2.6 2.3 2 x 1.5 Black Yellow
BEW 2.5-10 10 19.8 7.8 9.8 3.3 2.9 2 x 2.5 Gray Blue
BEW 2.5-12 12 21.8 7.8 9.8 3.3 2.9 2 x 2.5 Gray Blue
BEW 4.0-12 12 22.2 8.5 10.2 4.2 3.8 2 x 4.0 Orange Gray
BEW 6.0-14 14 25.2 9.5 11.2 5.3 4.9 2 x 6.0 Green Yellow
BEW 10 – 14 14 26 12.6 12 6.9 6.5 2 x 10.0 Brown Red
BEW 16 -14 14 30.3 19 16.3 8.7 8.3 2 x 16.0 Milk Blue
