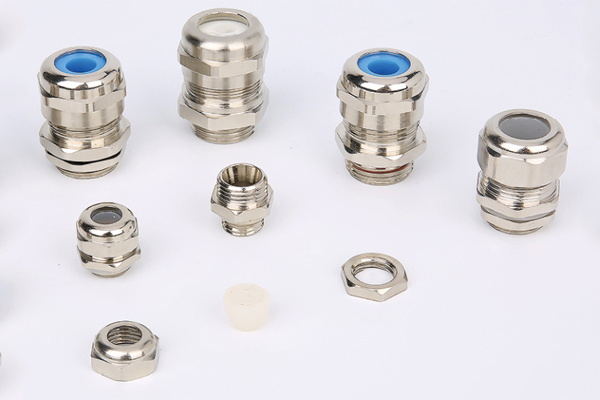

Watertight Temperature Brass Cable Gland BHTPG

Watertight Temperature Brass Cable Gland BHTPG
Category:

Watertight Temperature Brass Cable Gland

Specification:

Material:
Nickel-plated brass
Hermetic seal: Silicone rubber
O-ring: Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature: -60°C to 250°C
Certificate: CE, RoHS, REACH approved
Brass Cable Gland for High-temperature resistant which operating temperatures are between -60 °C  to 250 ° C with waterproof

(In mm)

Item Cable Range Thread Length
GL
Thread O.D.
AG
Spanner size Item No.
PG7 3-7 7 12.5 16/15 BHTPG7S
PG9 4-8 7 15.2 18/18 BHTPG9S
PG11 5-9 8 18.5 22/21 BHTPG11S
PG13.5 8-12 8 20.4 24/23 BHTPG13.5S
Item Cable Range Thread Length
GL
Joint Length
H
Spanner size
M PG G NPT
M12X1.5 PG7 G1/4 NPT1/4 4-7 7 21 18
M16X1.5 PG9 4-11 7 25 20
M18X1.5 PG11 G3/8 NPT3/8 4-11 7 25 22
M20X1.5 PG13.5 G1/2 NPT1/2 5-14 8 29 24
M22X1.5 PG16 5-14 8 29 24
M25X1.5 PG21 G3/4 NPT3/4 11-20 9 30 30
M32X1.5 PG29 G1 NPT1 15-25 10 32 36
M40X1.5 PG36 G1-1/4 NPT1-1/4 22-32 11 35 44
M50X1.5 PG42 G1-1/2 NPT1-1/2 31-42 13 37 58
M63X1.5 PG48 G2 NPT2 41-51 14 40 68
M72X2 50-54 16 47 81
