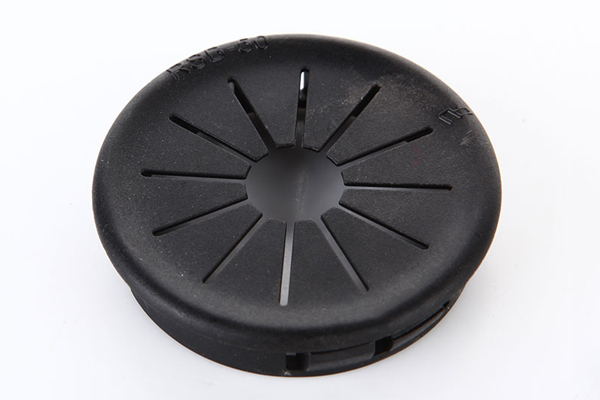

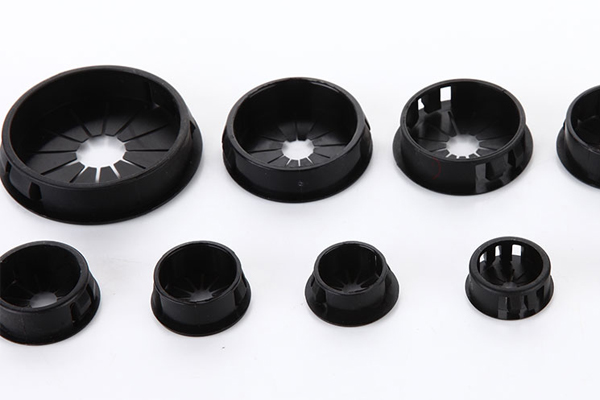

Wire Bushing Nylon Snap Bushing Round RSB

  • Wire Bushing
Category:

Wire Bushing Nylon Snap Bushing Round RSB

Specification:

Material: Nylon 66
Flammability: 94V-2
Certificate: UL
Color: White, Black, Available

Item No. Mounting Hole
A (mm)
Max. cable range B(mm) Covering
C(mm)
Height
L(mm)
Packing
RSB-16 15.9 11.1 18.3 10 100pcs
RSB-19 18.8 12.7 21.8 10
RSB-22 22.2 14.3 23.8 11.5
RSB-25 25.3 20.4 28.5 11.3
RSB-28 27.6 22.4 30.8 11.3
RSB-30 27.6 22.4 30.8 11.3
RSB-35 34.2 29.3 37.5 11.3
RSB-38 38 31 31 11.2
RSB-45 44.5 40 49.7 11.8
RSB-50 50.1 45 54.6 11.8



Item No. Mounting Hole
A (mm)
Max. cable range B(mm) Covering
C(mm)
Height
L(mm)
Packing
RSB-16A 15.9 11.1 18.3 10 100pcs
RSB-19A 18.8 12.7 21.8 10
RSB-22A 22.2 14.3 23.8 11.5
RSB-25A 25.3 20.4 28.5 11.3
RSB-28A 27.6 22.4 30.8 11.3
RSB-30A 27.6 22.4 30.8 11.3
RSB-35A 34.2 29.3 37.5 11.3
RSB-38A 38 31 31 11.2
RSB-45A 44.5 40 49.7 11.8
RSB-50A 50.1 45 54.6 11.8
