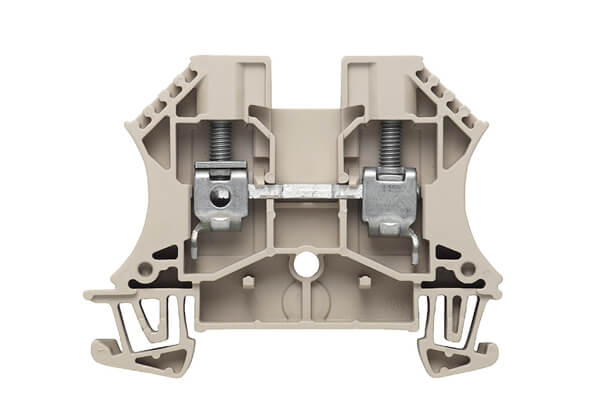

1020200000 Feed-through terminal, Screw connection, 6 mm², 800 V, 41 A, dark beige
Specification：
| Type | WDU 6 |
| Order No. | 1020200000 |
| Version | Feed-through terminal, Screw connection, 6 mm², 800 V, 41 A, dark beige |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated cross-section | 6 mm² |
| Rated voltage | 800 V |
| Rated current | 41 A |
| Current at maximum wires | 57 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
