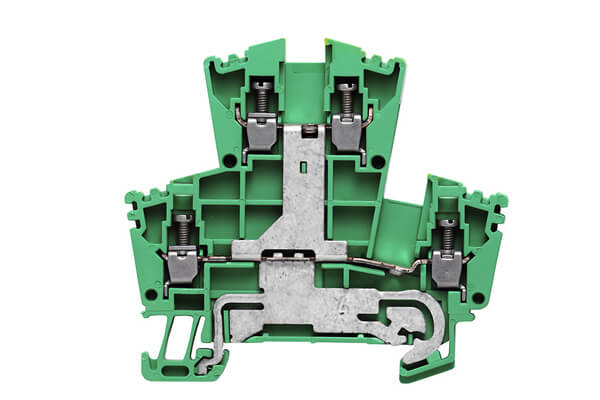

1036300000 PE terminal, Double-tier terminal, Screw connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow

Category: WeidMuller

1036300000 PE terminal, Double-tier terminal, Screw connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow

Specification：

Type	WDK 2.5PE
Order No.	1036300000
Version	PE terminal, Double-tier terminal, Screw connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow

Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Rated cross-section	2.5 mm²
Rated voltage to adjoining terminal	400 V
Standards	IEC 60947-7-2
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage to adjacent terminal	6 kV
Pollution severity	3
