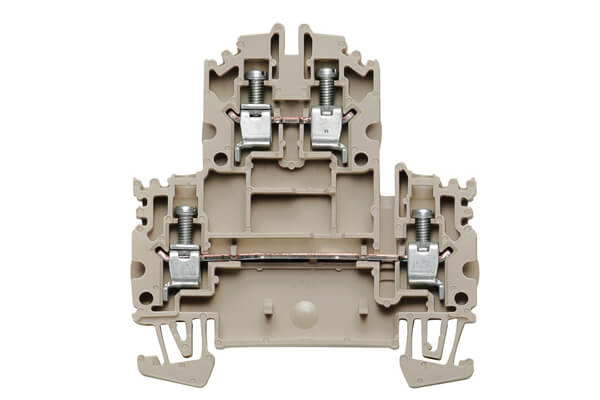

1041900000 Double-tier terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige
Specification：
| Type | WDK 4N |
| Order No. | 1041900000 |
| Version | Double-tier terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige |
| GTIN (EAN) | 4032248138814 |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Rated cross-section | 4 mm² |
| Rated voltage | 800 V |
| Rated current | 32 A |
| Current at maximum wires | 35 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 2 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
