Specification:

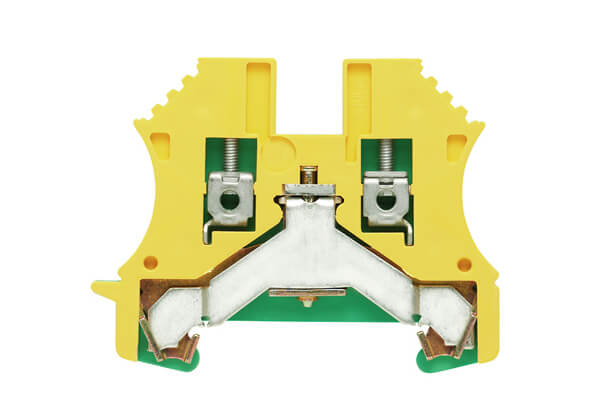

Type | WPE 2.5 |
Order No. | 1010000000 |
Version | PE terminal, Screw connection, 2.5 mm², 300 A (2.5 mm²), Green/yellow |
Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
Continuous operating temp., min. | -60 °C |
Continuous operating temp., max. | 130 °C |
Rated cross-section | 2.5 mm² |
Rated voltage to adjoining terminal | 800 V |
Standards | IEC 60947-7-2 |
Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
Rated impulse withstand voltage to adjacent terminal | 8 kV |
Pollution severity | 3 |
