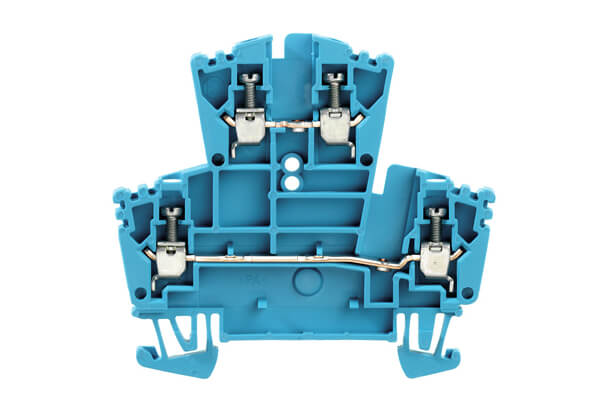

1021580000 Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, blue

Category: WeidMuller

1021580000 Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, blue

Specification：

Type	WDK 2.5 BL
Order No.	1021580000
Version	Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, blue

Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Rated cross-section	2.5 mm²
Rated voltage	400 V
Rated current	24 A
Current at maximum wires	32 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	2.66 mΩ
Rated impulse withstand voltage	6 kV
Pollution severity	3
