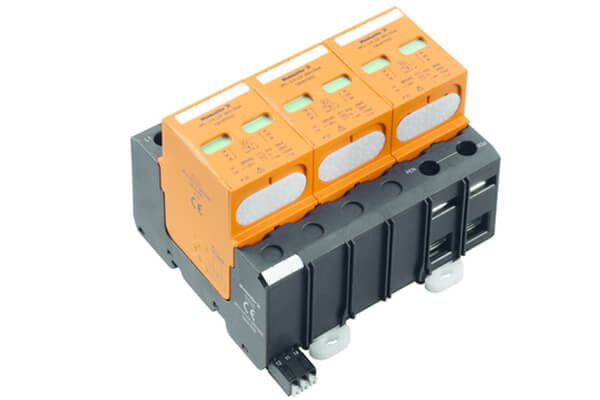

1351670000 VPU I 3 R LCF 280V/25KA Surge voltage arrester, Low voltage, with remote contact, Leakage-current-free, TN-C, IT without N

Category:

1351670000 VPU I 3 R LCF 280V/25KA Surge voltage arrester, Low voltage, with remote contact, Leakage-current-free, TN-C, IT without N

Specification:

Type VPU I 3 R LCF 280V/25KA
Order No. 1351670000
Version Surge voltage arrester, Low voltage, with remote contact, Leakage-current-free, TN-C, IT without N
Humidity 5 – 95% rel. humidity
Operating temperature, max. 70 °C
Operating temperature, min. -40 °C
Storage temperature, max. 80 °C
Storage temperature, min. -40 °C
Operating temperature -40 °C…70 °C
Storage temperature -40 °C…80 °C
Connection type PUSH IN
Stripping length 8 mm
Cross-section for connected wire, solid core, min. 0.14 mm²
Cross-section for connected wire, solid core, max. 1.5 mm²
Colour black, orange
Design Installation housing; 6 TE, Insta IP 20
Optical function display green = OK; red = arrester is defective – replace
Protection degree IP20
Rail TS 35
Segment Power distribution
Suitable for Count-in installation (leakage current free)
UL 94 flammability rating V-0
Version with remote contact, Leakage-current-free
