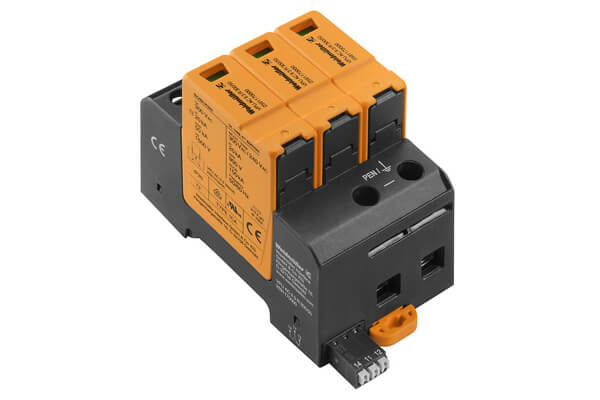

2591170000 VPU AC II 3 R 300/50 Surge voltage arrester, Low voltage, Surge protection, with remote contact, TN-C, UP(L/N-PE) ≤ 1.5 kV

Category:

2591170000 VPU AC II 3 R 300/50 Surge voltage arrester, Low voltage, Surge protection, with remote contact, TN-C, UP(L/N-PE) ≤ 1.5 kV

Specification:

Type VPU AC II 3 R 300/50
Order No. 2591170000
Version Surge voltage arrester, Low voltage, Surge protection, with remote contact, TN-C, UP(L/N-PE) ≤ 1.5 kV
Humidity 5 – 95% rel. humidity
Operating temperature, max. 85 °C
Operating temperature, min. -40 °C
Storage temperature, max. 85 °C
Storage temperature, min. -40 °C
Operating temperature -40 °C…85 °C
Storage temperature -40 °C…85 °C
Connection type PUSH IN
Stripping length 8 mm
Cross-section for connected wire, solid core, min. 0.14 mm²
Cross-section for connected wire, solid core, max. 1.5 mm²
Altitude ≤ 4000 m
Colour orange, black
Design Installation housing; 3TE, Insta IP 20
Optical function display green = OK; red = arrester is defective – replace
Protection degree IP20 in installed state
Rail TS 35
Segment Power distribution
UL 94 flammability rating V-0
Version Surge protection, with remote contact
