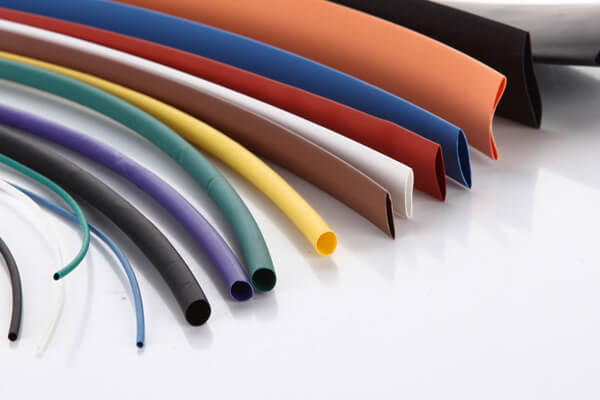

3:1 Heat Shrink tubing Single Ultra Thin Wall Flexible HS3S-H
Specification:
Operating temperature: -55℃ to 125℃
Fully shrink temperature: ≥125℃
RoHS compliant
Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 3:1
Flame retardant
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER mm | WALL THICKNESS mm | SPOOL LENGTH M/spool |
| 1/16 | 1.5 | 1.6±0.1 | ≤0.50 | 0.45±0.10 | 200 |
| 1/8 | 3 | 3.2 ±0.1 | ≤1.00 | 0.55±0.10 | 200 |
| 3/16 | 4.5 | 4.7 ±0.1 | ≤1.50 | 0.60±0.10 | 100 |
| 1/4 | 6 | 6.2 ±0.1 | ≤2.00 | 0.65±0.10 | 100 |
| 3/8 | 9 | 9.3 ± 0.2 | ≤3.00 | 0.75±0.15 | 50 |
| 1/2 | 12 | 12.3 ±0. 2 | ≤4.00 | 0.75±0.15 | 50 |
| 5/8 | 15 | 15.3 ±0. 2 | ≤5.00 | 0.80±0.15 | 50 |
| 3/163/4 | 18 | 1 8.3 ±0. 2 | ≤6.00 | 0.85±0.15 | 50 |
| 1 | 24 | 24.4 ±0. 3 | ≤8.00 | 1.00±0.20 | 25 |
| 1-1/4 | 30 | 30.4 ±0. 3 | ≤10.0 | 1.15±0.20 | 25 |
| 1-1/2 | 39 | 39.6 ±0. 5 | ≤13.0 | 1.50±0.20 | 25 |
| 2 | 50 | 50.6 ±0. 5 | ≤16.0 | 2.50±0.20 | 25 |
| | 60 | 61.5 ± 1.0 | ≤20.0 | 2.60±0.20 | 25 |
| | 70 | 71.5 ± 1.0 | ≤23.0 | 2.60±0.20 | 25 |
| 3 | 80 | 81.5 ± 1.0 | ≤26.0 | 2.60±0.20 | 25 |
| | 90 | 91.5 ± 1.0 | ≤30.0 | 2.60±0.20 | 25 |
| 4 | 100 | 101.5 ±1 .0 | ≤33.0 | 2.60±0.20 | 25 |
