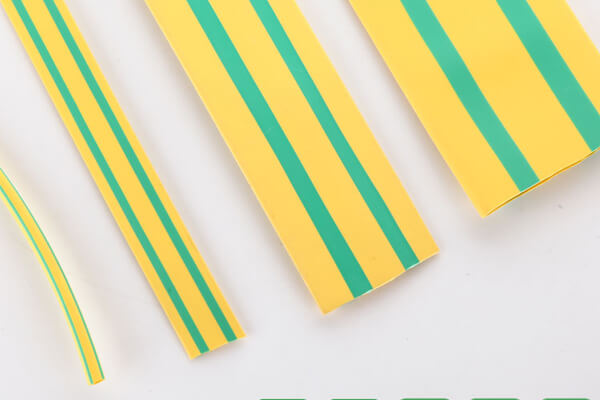

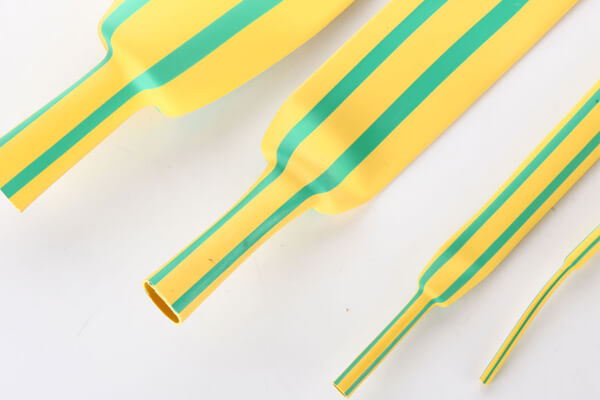

3:1 Single Wall Heat Shrinking Tube Yellow/Green Stripped Thin Wall Cross-linked Polyolefin Heat Shrinking Tube HS3S-YG
3:1 Single Wall Heat Shrinking Tube Yellow/Green Stripped Thin Wall Cross-linked Polyolefin Heat Shrinking Tube HS3S-YG
Specification:
Operating temperature: -55℃ to 125℃
Shrink Temperature:90 ℃
RoHS compliant
Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 3:1
Flame retardant
Halogen Free, Low Smoke
| SIZE | AS SUPPLIED | AFTER RECOVERY | ROUND/FLAT | STANDARD PACKAGE M/spool | |
| mm | INTERNAL DIAMETER Min(mm) | INTERNAL DIAMETER Max(mm) | WALL THICKNESS mm | ||
| 3.2 | 3.2 | 1 | 0.55±0.15 | Round | 200 |
| 4.8 | 4.8 | 1.5 | 0.60±0.15 | Round | 100 |
| 6.4 | 6.4 | 2 | 0.65±0.15 | Round | 100 |
| 9.5 | 9.5 | 3 | 0.75±0.15 | Flat | 50 |
| 12.7 | 12.7 | 4 | 0.75±0.20 | Flat | 50 |
| 19.1 | 19.1 | 6 | 0.85±0.20 | Flat | 50 |
| 25.4 | 25.4 | 8 | 1.00±0.20 | Flat | 50 |
| 39 | 39 | 13 | 1.50±0.20 | Flat | 50 |
