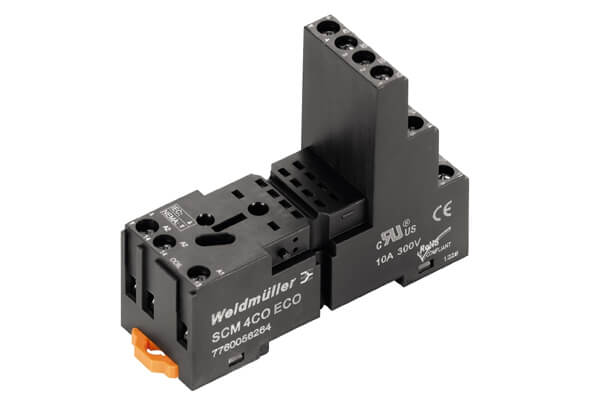

Specification:
Type | SCM 2CO ECO |
Order No. | 7760056263 |
Version | D-SERIES DRM, Relay bases, No. of contacts: 2 CO contact, Continuous current: 12 A, Screw connection |
Rated switching voltage | 250 V AC |
Max. switching voltage, AC | 300 V |
Continuous current | 12 A |
Rated voltage | 250 V |
Surge voltage category | III |
Pollution severity | 2 |
Insulating material group | C |
Protection degree | IP20 |
Dielectric strength, Input/Output | 4 kVeff / 1 min |
Creepage and clearance distance input – output | ≥ 5.5 mm |
Dielectric strength of neighbouring contacts | 4 kVeff / 1 min |
Dielectric strength of open contact | 1 kVeff / 1 min |
Impulse withstand voltage | 4.8 kV (1.2/50 µs) |
Wire connection method | Screw connection |
Stripping length, rated connection | 7 mm |
Tightening torque, min. | 0.5 Nm |
Tightening torque, max. | 0.8 Nm |
Clamping range, min. | 0.5 mm² |
Clamping range, max. | 2.5 mm² |
Wire cross-section, solid, min. | 0.5 mm² |
Wire cross-section, solid, max. | 2.5 mm² |
Wire connection cross-section, finely stranded, min. | 0.5 mm² |
Wire connection cross section, finely stranded, max. | 2.5 mm² |
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm² |
Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
Blade size | size PH1 |
