Specification:

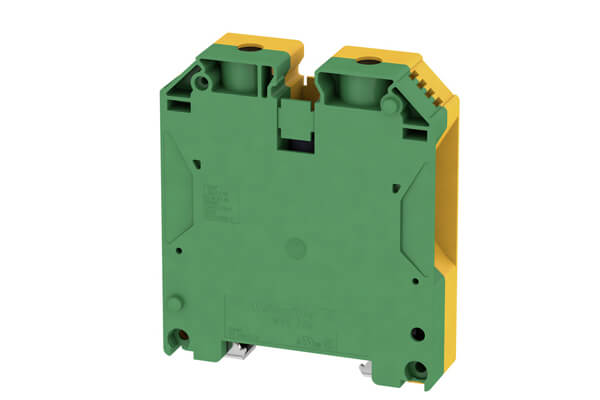

Type | WPE 70N/35 |
Order No. | 9512200000 |
Version | PE terminal, Screw connection, 70 mm², 8400 A (70 mm²), Green/yellow |
Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
Continuous operating temp., min. | -60 °C |
Continuous operating temp., max. | 130 °C |
Rated cross-section | 70 mm² |
Rated voltage to adjoining terminal | 1,000 V |
Standards | IEC 60947-7-2 |
Volume resistance according to IEC 60947-7-x | 0.17 mΩ |
Rated impulse withstand voltage to adjacent terminal | 8 kV |
Pollution severity | 3 |
