Anti-explosion Stainless Steel Cable Gland SSM
Specification:
Material:
Stainless Steel SS304/316L
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, EX approved
Explosion proof, waterproof.
(In mm)

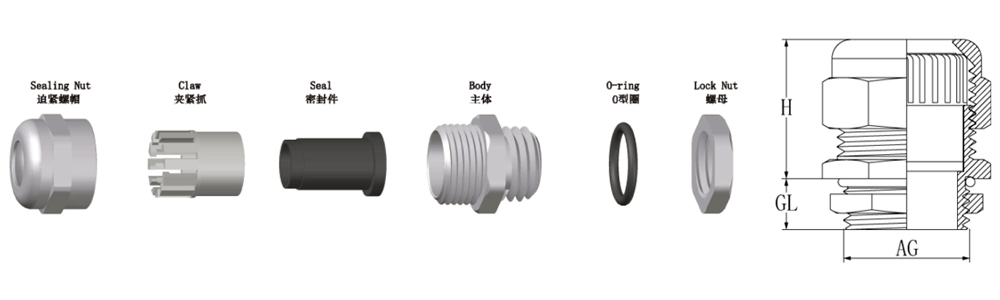

| Item | Cable Range | Thread Length GL | Thread O.D. AG | Joint Length H | Spanner size | Item No. |
| M8X1 | 2-5 | 5 | 8 | 12 | 16 | SSM8 |
| M10X1 | 2-5 | 7 | 10 | 14 | 19 | SSM10-5 |
| 3-6.5 | 7 | 10 | 14 | 19 | SSM10 | |
| M12X1.5 | 2-5 | 7 | 12 | 14 | 19 | SSM12-5 |
| 3-6.5 | 7 | 12 | 19 | SSM12 | ||
| 4-8 | 8 | 12 | 17/14 | 19 | SSM12-8 | |
| M14X1.5 | 3-6 | 8 | 14 | 17 | 19 | SSM14-6 |
| 4-8 | 8 | 14 | 17 | 19 | SSM14 | |
| M16X1.5 | 3-6 | 8 | 16 | 18 | 20 | SSM16-6 |
| 4-8 | 8 | 16 | 18 | 20 | SSM16 | |
| 5-10 | 8 | 16 | 20/18 | 21 | SSM16-10 | |
| M18X1.5 | 3-7 | 8 | 18 | 20/21 | 21 | SSM18-7 |
| 5-10 | 8 | 18 | 20/21 | 21 | SSM18 | |
| 6-12 | 8 | 18 | 22/20 | 22 | SSM18-12 | |
| M20X1.5 | 5-10 | 8 | 20 | 22 | 22 | SSM20-10 |
| 6-12 | 8 | 20 | 22 | 22 | SSM20 | |
| 10-14 | 8 | 20 | 24/22 | 23 | SSM20-12 | |
| M22X1.5 | 8-12 | 8 | 22 | 24 | 23 | SSM22-12 |
| 10-14 | 8 | 22 | 24 | 23 | SSM22 | |
| 12-16 | 8 | 22 | 27724 | 23 | SSM22-16 | |
| M24X1.5 | 8-12 | 9 | 24 | 24/27 | 25 | SSM24-12 |
| 10-14 | 9 | 24 | 24/2 了 | 25 | SSM24 | |
| 12-16 | 9 | 24 | 27 | 27 | SSM24-16 | |
| 8-12 | 9 | 25 | 24/2 了 | 25 | SSM25-12 | |
| M25X1.5 | 10-14 | 9 | 25 | 24/27 | 27 | SSM25-14 |
| 12-16 | 9 | 25 | 27 | 27 | SSM25-16 | |
| 13-18 | 9 | 25 | 30/27 | 27 | SSM25-18 | |
| M27X1.5 | 13-18 | 9 | 27 | 30 | 27 | SSM27 |
| 13-18 | 9 | 30 | 30/32 | 29 | SSM30 | |
| 15-22 | 9 | 30 | 35/32 | 29 | SSM30-22 | |
| M32X1.5 | 13-18 | 10 | 32 | 35 | 29 | SSM32-18 |
| 15-22 | 10 | 32 | 35 | 29 | SSM32 | |
| 18-25 | 10 | 32 | 40/35 | 31 | SSM32-25 | |
| M33X2 | 15-22 | 10 | 33 | 35/36 | 29 | SSM33 |
| M36X1.5 | 13-18 | 10 | 36 | 40 | 31 | SSM36-18 |
| 15-22 | 10 | 36 | 40 | 31 | SSM36-22 | |
| 18-25 | 10 | 36 | 40 | 31 | SSM36 | |
| M40X1.5 | 18-25 | 11 | 40 | 40/45 | 31 | SSM40-25 |
| 22-30 | 11 | 40 | 45 | 35 | SSM40-30 | |
| 25-33 | 11 | 40 | 50/45 | 37 | SSM40-33 | |
| M47X1.5 | 25-33 | 11 | 47 | 50 | 37 | SSM47 |
| M48X2 | 25-33 | 11 | 48 | 50/52 | 37 | SSM48 |
| M50X1.5 | 30-35 | 12 | 50 | 57/55 | 37 | SSM50-35 |
| 32-38 | 12 | 50 | 57/55 | 37 | SSM50 | |
| 37-44 | 13 | 50 | 64/55 | 38 | SSM50-44 | |
| M60X1.5 | 37-44 | 13 | 60 | 65 | 38 | SSM60 |
| M63X1.5 | 37-44 | 13 | 63 | 64/68 | 38 | SSM63 |
| 42-52 | 13 | 63 | 了 8/68 | 42 | SSM63-52 | |
| M64X2 | 37-44 | 13 | 64 | 64/68 | 38 | SSM64 |
| 42-52 | 13 | 64 | 了 8/68 | 42 | SSM64-52 | |
| M72X2 | 42-52 | 15 | 72 | 76/80 | 42 | SSM72 |
| 48-58 | 15 | 72 | 76/80 | 45 | SSM72-58 |
