Specification:
range of product |

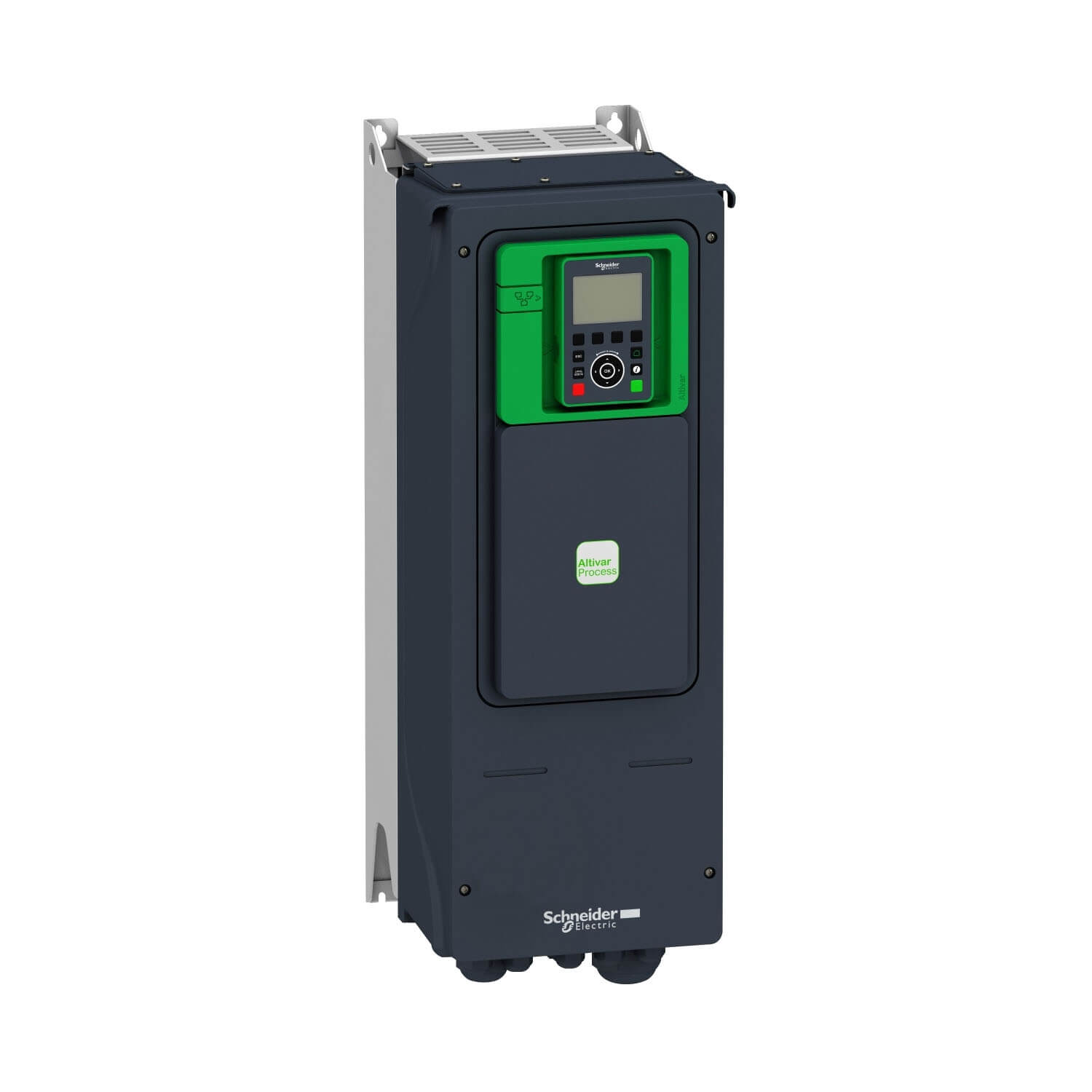

Altivar Process ATV600
|
|
---|---|---|
product or component type |
Variable speed drive
|
|
product specific application |
Process and utilities
|
|
device short name |
ATV650
|
|
variant |
Standard version
|
|
product destination |
Asynchronous motors
Asynchronous motors |
|
EMC filter |
Integrated with 50 m conforming to EN/IEC 61800-3 category C2
|
|
IP degree of protection |
IP54 conforming to IEC 60529
IP55 conforming to IEC 61800-5-1 |
|
type of cooling |
Forced convection
|
|
supply frequency |
50…60 Hz – 5…5 %
|
|
network number of phases |
3 phases
|
|
[Us] rated supply voltage |
380…480 V – 15…10 %
|
|
motor power kW |
250 kW (heavy duty)
11 kW (normal duty) |
|
motor power hp |
15 hp normal duty
|
|
line current |
432 A at 400 V (heavy duty)
566 A at 380 V (normal duty) 453 A at 380 V (heavy duty) 19.8 A at 380 V (normal duty) |
|
prospective line Isc |
50 kA
|
|
apparent power |
299 kVA at 440 V (heavy duty)
14.1 kVA at 480 V (normal duty) |
|
continuous output current |
477 A at 2.5 kHz for heavy duty
23.5 A at 4 kHz for normal duty |
|
maximum transient current |
715.5 A during 60 s (heavy duty)
25.9 A during 60 s (normal duty) |
|
asynchronous motor control profile |
Constant torque standard
Optimized torque mode Optimized torque mode |
|
synchronous motor control profile |
Synchronous reluctance motor
Permanent magnet motor |
|
Output frequency |
0.0001…0.5 kHz
|
|
speed drive output frequency |
0.1…599 Hz
|
|
nominal switching frequency |
4 kHz
|
|
switching frequency |
2…8 kHz adjustable
2…12 kHz adjustable |
|
safety function |
STO (safe torque off) SIL 3
|
|
discrete input logic |
16 preset speeds
|
|
communication port protocol |
Modbus TCP
Ethernet Ethernet |
|
option card |
Slot A: communication module, Profinet
Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1 |
output voltage |
<= power supply voltage
|
|
---|---|---|
permissible temporary current boost |
1.5 x In during 60 s (heavy duty)
1.1 x In during 60 s (normal duty) |
|
motor slip compensation |
Not available in permanent magnet motor law
Can be suppressed Automatic whatever the load Can be suppressed |
|
acceleration and deceleration ramps |
Linear adjustable separately from 0.01…9999 s
|
|
braking to standstill |
By DC injection
|
|
protection type |
Safe torque off: motor
Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor |
|
frequency resolution |
Analog input: 0.012/50 Hz
Display unit: 0.1 Hz |
|
electrical connection |
Line side: M12 bar – 3 cables 3 x 185 mm² maximum per phase (normal duty)
Line side: M12 bar – 4 cables 3 x 120 mm² maximum per phase (normal duty) Motor: M12 bar – 3 cables 3 x 185 mm² maximum per phase (normal duty) Motor: M12 bar – 4 cables 3 x 120 mm² maximum per phase (normal duty) Line side: M12 bar – 3 cables 3 x 185 mm² maximum per phase (heavy duty) Line side: M12 bar – 4 cables 3 x 120 mm² maximum per phase (heavy duty) Motor: M12 bar – 3 cables 3 x 185 mm² maximum per phase (heavy duty) Motor: M12 bar – 4 cables 3 x 120 mm² maximum per phase (heavy duty) Line side: M12 bar – 3 cables 3 x 150 mm² minimum per phase (normal duty) Line side: M12 bar – 4 cables 3 x 95 mm² minimum per phase (normal duty) Motor: M12 bar – 2 cables 3 x 185 mm² minimum per phase (normal duty) Motor: M12 bar – 3 cables 3 x 120 mm² minimum per phase (normal duty) Line side: M12 bar – 2 cables 3 x 185 mm² minimum per phase (heavy duty) Line side: M12 bar – 3 cables 3 x 95 mm² minimum per phase (heavy duty) Motor: M12 bar – 2 cables 3 x 185 mm² minimum per phase (heavy duty) Motor: M12 bar – 3 cables 3 x 120 mm² minimum per phase (heavy duty) Control: removable screw terminals0.5…1.5 mm²/AWG 20…AWG 16 |
|
connector type |
RJ45 (on the remote graphic terminal) for Modbus serial
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
|
physical interface |
2-wire RS 485 for Modbus serial
|
|
transmission frame |
RTU for Modbus serial
|
|
transmission rate |
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
10/100 Mbit/s for Ethernet IP/Modbus TCP |
|
exchange mode |
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
|
|
data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
type of polarization |
No impedance for Modbus serial
|
|
number of addresses |
1…247 for Modbus serial
|
|
method of access |
Slave Modbus TCP
|
|
supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection |
|
local signalling |
3 LEDs (dual colour) for embedded communication status
4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic |
|
width |
264 mm
|
|
height |
678 mm
|
|
depth |
299 mm
|
|
net weight |
13.7 kg
|
|
analogue input number |
3
|
|
analogue input type |
AI1, AI2, AI3 software-configurable current: 0…20 mA/4…20 mA, impedance: 250 Ohm, resolution 12 bits
AI1, AI2, AI3 software-configurable voltage: 0…10 V DC, impedance: 30 kOhm, resolution 12 bits |
|
discrete input number |
8
|
|
discrete input type |
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm DI1…DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm |
|
input compatibility |
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI1…DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
|
discrete input logic |
Negative logic (sink) (DI1…DI6), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1) Positive logic (source) (DI1…DI6), < 5 V (state 0), > 11 V (state 1) |
|
analogue output number |
2
|
|
analogue output type |
Software-configurable current AO1, AO2: 0…20 mA, resolution 10 bits
Software-configurable voltage AO1, AO2: 0…10 V DC impedance 470 Ohm, resolution 10 bits |
|
sampling duration |
5 ms +/- 1 ms (DI5, DI6) – discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) – analog input 10 ms +/- 1 ms (AO1) – analog output 2 ms +/- 0.5 ms (DI1…DI4) – discrete input |
|
accuracy |
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
|
linearity error |
AO1, AO2: +/- 0.2 % for analog output
AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
|
relay output number |
3
|
|
relay output type |
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
|
refresh time |
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
|
|
minimum switching current |
Relay output R1, R2, R3: 5 mA at 24 V DC
|
|
maximum switching current |
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
|
isolation |
Between power and control terminals
|
|
Variable speed drive application selection |
Other application Food and beverage processing
Fan Mining mineral and metal Pump Mining mineral and metal Fan Oil and gas Other application Water and waste water Screw compressor Building – HVAC Pump Food and beverage processing Fan Food and beverage processing Atomization Food and beverage processing Electro submersible pump (ESP) Oil and gas Water injection pump Oil and gas Jet fuel pump Oil and gas Compressor for refinery Oil and gas Centrifuge pump Water and waste water Positive displacement pump Water and waste water Electro submersible pump (ESP) Water and waste water Screw pump Water and waste water Lobe compressor Water and waste water Screw compressor Water and waste water Compressor centrifugal Water and waste water Fan Water and waste water Conveyor Water and waste water Mixer Water and waste water Compressor centrifugal Building – HVAC |
|
Motor power range AC-3 |
250…500 kW at 480…500 V 3 phases
7…11 kW at 380…440 V 3 phases |
|
mounting mode |
Wall mount
|
insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth
|
|
---|---|---|
noise level |
52 dB conforming to 86/188/EEC
|
|
power dissipation in W |
5700 W, switching frequency 2.5 kHz (heavy duty)
|
|
operating position |
Vertical +/- 10 degree
|
|
maximum THDI |
<48 % from 80…100 % of load conforming to IEC 61000-3-12
|
|
electromagnetic compatibility |
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
|
pollution degree |
2 conforming to EN/IEC 61800-5-1
|
|
vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 |
|
shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3
|
|
ambient air temperature for operation |
40…50 °C (with derating factor)
-15…40 °C (without derating) |
|
ambient air temperature for storage |
-40…70 °C
|
|
operating altitude |
1000…4800 m with current derating 1 % per 100 m
<= 1000 m without derating |
|
environmental characteristic |
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3 |
|
standards |
EN/IEC 61800-3
Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C |
|
product certifications |
ATEX zone 2/22
CSA ATEX INERIS REACH TÜV |
|
marking |
CE
|
Package 1 Weight |
21.000 kg
|
---|
