Ball Lock Cable Ties CoatedStainless Steel Cable Ties BZ-CP

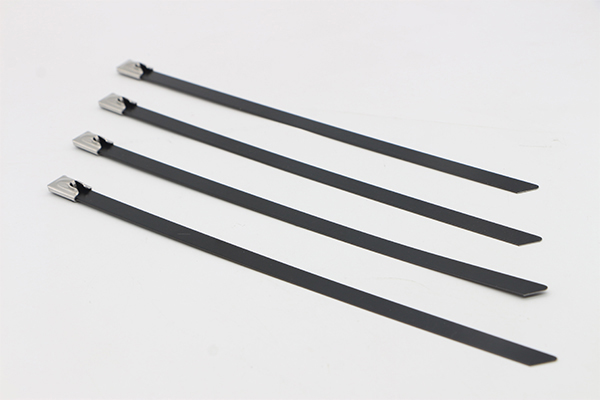

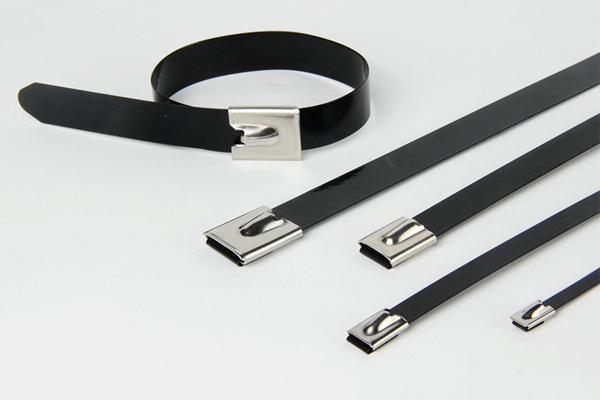

Ball Lock Cable Ties Coated Stainless Steel Cable Ties BZ-CP

Specification:

Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -80℃ to 150℃
Color: Black, Available
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. The coating Ball Lock Cable Ties provides extra corrosion protection, excellent chemical resistance.

Item No. Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
BZ-CP 4.6×100 4.6 0.18 100 3.9 0.35 0.014 25 1.00 12.7 0.50 900 200
BZ-CP 4.6×150 150 5.9 37 1.46
BZ-CP 4.6×200 200 7.9 50 1.97
BZ-CP 4.6×250 250 9.8 63 2.50
BZ-CP 4.6 x 300 300 11.8 76 3.00
BZ-CP 4.6×350 350 13.8 89 3.51
BZ-CP 4.6×400 400 15.7 102 4.00
BZ-CP 4.6×450 450 17.7 115 4.50
BZ-CP 4.6×500 500 19.7 128 5.00
BZ-CP 4.6×550 550 21.7 141 5.56
BZ-CP 4.6×650 650 25.6 167 6.58
BZ-CP 4.6 x 700 700 27.6 179 7.05
BZ-CP 4.6×800 800 31.5 193 7.60
BZ-CP 4.6×900 900 35.4 200 7.87
BZ-CP 4.6×1000 1000 39.4 206 8.12
BZ-CP 4.6×1100 1100 43.3 278 10.94
BZ-CP 7.9×150 7.9 0.31 150 5.9 0.35 0.014 37 1.46 12.7 0.50 1200 270
BZ-CP 7.9 x 200 200 7.9 50 1.97
BZ-CP 7.9×250 250 9.8 63 2.50
BZ-CP 7.9×300 300 11.8 76 3.00
BZ-CP 7.9×350 350 13.8 89 3.50
BZ-CP 7.9×400 400 15.7 102 4.00
BZ-CP 7.9×500 500 19.7 128 5.00
BZ-CP 7.9×600 600 23.6 154 6.07
BZ-CP 7.9×800 800 31.5 193 7.60
BZ-CP 7.9×1000 1000 39.4 206 8.12
BZ-CP 10×300 10 0.39 300 11.8 0.35 0.014 76 3.00 12.7 0.50 1700 390
BZ-CP 10×350 350 13.8 89 3.50
BZ-CP 10×400 400 15.7 102 4.00
BZ-CP 10×500 500 19.7 128 5.00
BZ-CP 10×600 600 23.6 154 6.07
BZ-CP 10×800 800 31.5 193 7.60
BZ-CP 10×1000 1000 39.4 206 8.12
BZ-CP 12×350 12 0.47 350 13.8 0.45 0.018 78 3.07 25.4 1.00 2200 500
BZ-CP 12×400 400 15.7 102 4.02
BZ-CP 12×500 500 19.7 128 5.04
BZ-CP 12×600 600 23.6 154 6.06
BZ-CP 12×750 750 29.5 188 7.40
BZ-CP 12×900 900 35.4 228 8.98
BZ-CP 12×1100 1100 43.3 278 10.94
BZ-CP 12.7×350 12.7 0.50 350 13.8 0.45 0.018 78 3.07 25.4 1.00 2800 630
BZ-CP 12.7×400 400 15.7 102 4.02
BZ-CP 12.7×500 500 19.7 128 5.04
BZ-CP 12.7×600 600 23.6 154 6.06
BZ-CP 12.7×750 750 29.5 188 7.40
BZ-CP 12.7×900 900 35.4 228 8.98
BZ-CP 12.7×1100 1100 43.3 278 10.94
BZ-CP 15×350 15 0.59 350 13.8 0.45 0.018 78 3.07 25.4 1.00 3400 770
BZ-CP 15×400 400 15.7 102 4.02
BZ-CP 15×450 450 17.7 108 4.25
BZ-CP 15×600 600 23.6 148 5.83
BZ-CP 15×750 750 29.5 184 7.24
BZ-CP 15×900 900 35.4 220 8.66
BZ-CP 15×1100 1100 43.3 272 10.71
